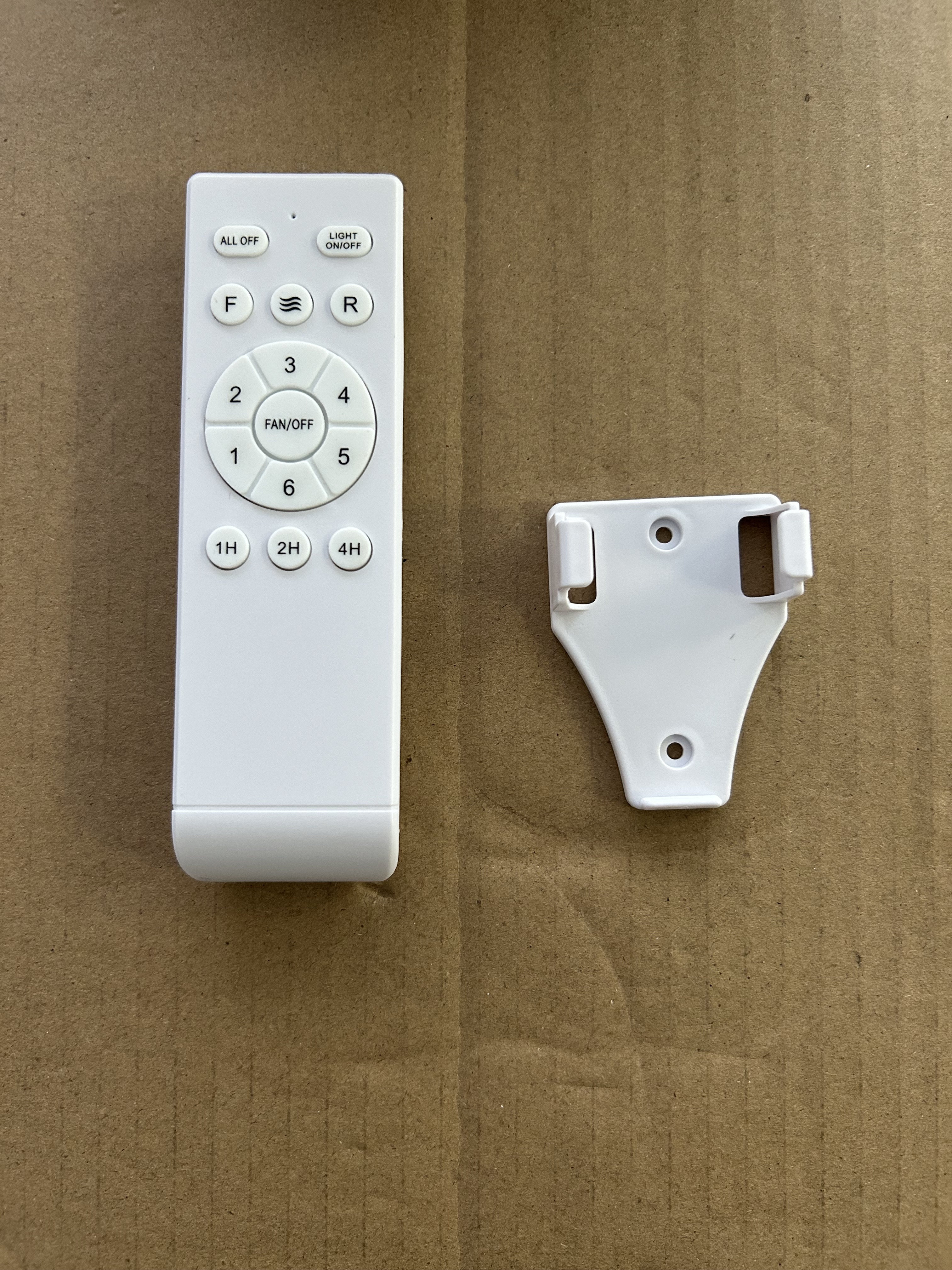

Remote ControlSix speeds, timer and fan/light control.
Control Options
Choose How You Control It

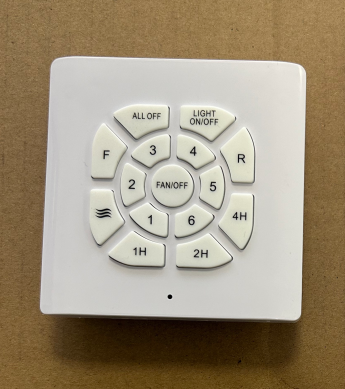

Wall ControlFan and light controls at the wall.
Dual control: remote and wall control are available together. Confirm the chosen hardware with the order.
Color Showcase
Four Shown Finishes
B2B Downrod Ceiling Fan with Light
Wholesale P-5026L-5 Downrod Ceiling Fan with Light
42 or 52 inch · five ABS blades · 24W three-color LED
P-5026L-5 is a five-blade downrod ceiling fan with an integrated light. Kajiapu supplies two sizes, four shown finishes and remote, wall or dual controls for wholesale projects.
- Two Size Options42 or 52 inch.
- 35W / 38W DC MotorSix speed settings.
- 24W Three-Color LEDIntegrated lighting for both sizes.
- 85–265V · 50Hz · IP44Core electrical and protection specification.
Available Finishes
Four P-5026L-5 Color Options
Compare the supplied product images. Ask Kajiapu to confirm finish samples for an order.
White Wood Grain
Supplied white wood grain product image.

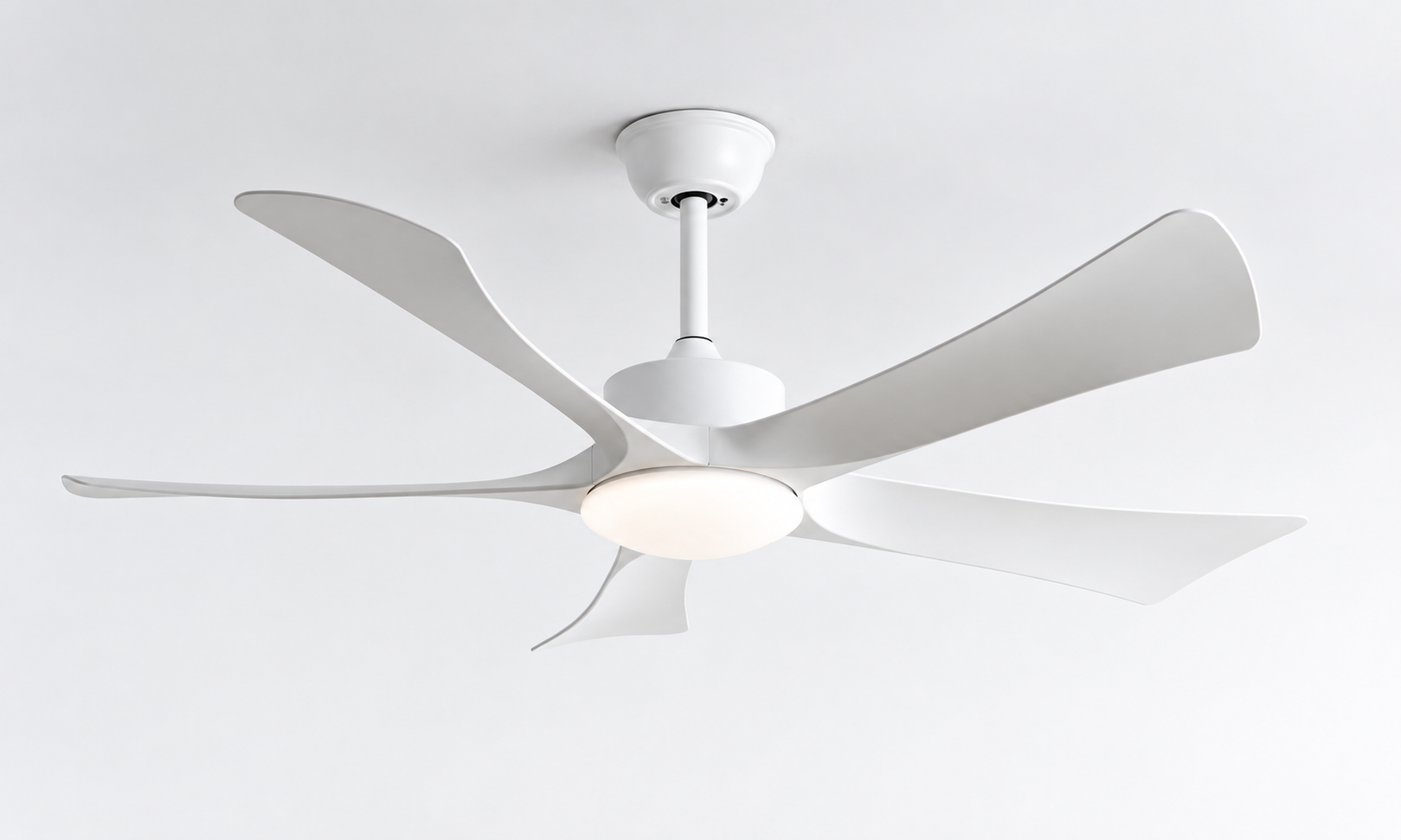

Pure White
Supplied pure white product image.

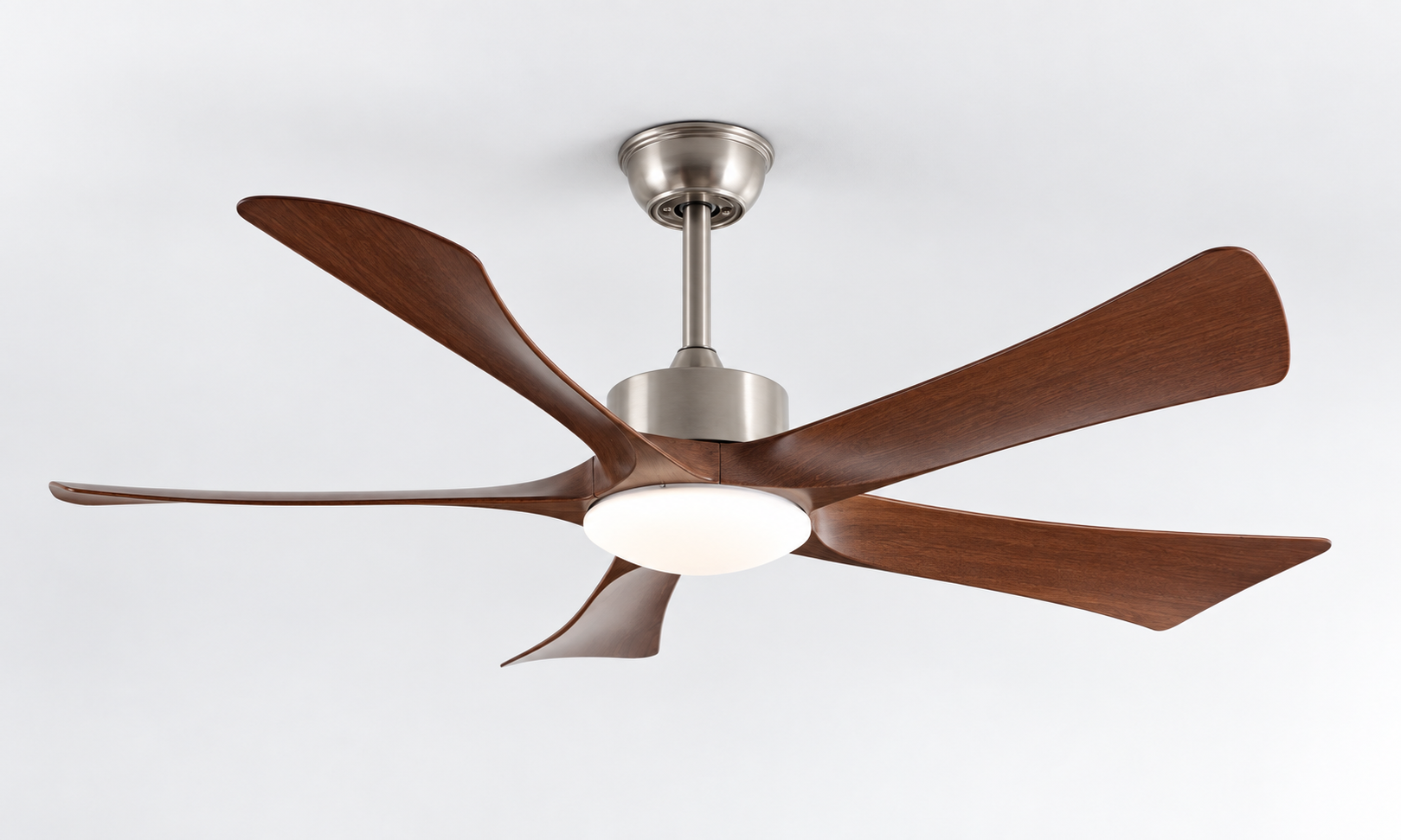

Satin Nickel Walnut
Satin-nickel housing with walnut-tone blades.

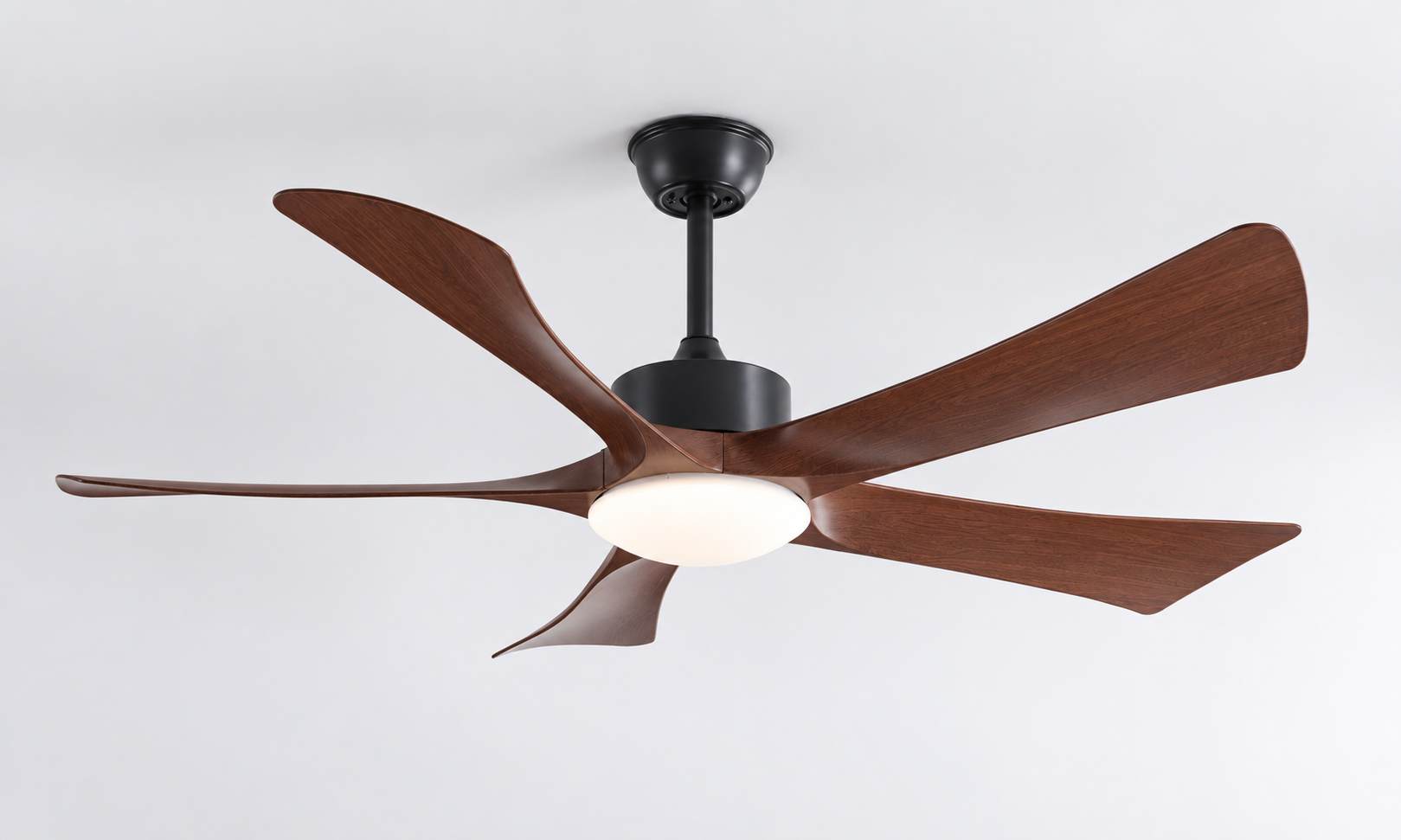

Black Walnut
Black housing with walnut-tone blades.
Confirmed Product Data
P-5026L-5 Specifications
Figures below follow the supplied product sheet. Confirm the selected size, finish and control configuration before ordering.
Ask about a configuration| Model | P-5026L-5 | Mounting Type | Downrod mount |
|---|---|---|---|
| 42 Inch | 106 cm · 6.7 kg gross · 35W motor · 220 RPM · 8–16 m² | ||
| 52 Inch | 132 cm · 7.3 kg gross · 38W motor · 170 RPM · 10–20 m² | ||
| Motor Type | DC motor | Blade Material | ABS · 5 blades |
| Motor Voltage | 85–265V, 50Hz | Ingress Protection | IP44 |
| Speed Settings | 6 speeds | Light | 24W three-color lamp |
| Color Rendering Index | Ra > 80 | Light-Source Voltage | 110V / 220V selectable |
| Control Type | Remote / wall / dual | Timer | 2H / 4H / 6H |
| Overall Height | 37.5 cm | ||
| Finishes | White Wood Grain, Pure White, Satin Nickel Walnut and Black Walnut; ask about customization | ||
Size Selection
Choose the Configuration for Your Project
P-5026L-5 has two configurations in the supplied data. Match blade span and listed coverage to the intended space, then confirm installation clearances.
- 42 Inch106 cm · 6.7 kg gross · 35W motor · 220 RPM · 8–16 m².
- 52 Inch132 cm · 7.3 kg gross · 38W motor · 170 RPM · 10–20 m².
Answers
P-5026L-5 Product FAQ
Key details from the supplied specification sheet.
It is a downrod mount model with a listed overall height of 37.5 cm.
The supplied sheet lists 42-inch and 52-inch configurations.
Yes. The sheet lists a 24W three-color LED.
The supplied sheet specifies ABS and the images show 5 blades.
Remote, wall and dual control are listed. Confirm the final hardware and button functions for your selected configuration.
The with-light configuration uses an 85–265V, 50Hz motor specification and IP44 protection. The light has a color-rendering index above Ra 80, with 110V or 220V light-source voltage selectable.
Project Inquiry
Request P-5026L-5 Details
Ask Kajiapu about P-5026L-5 sizes, finishes, controls and project requirements. E-mail sales@kajiapu.com, call +86 13087968007. Address: 3rd Floor, Building 1, Shengqiu Industrial Park, Guzhen Town, Zhongshan, Guangdong, China 528400.
