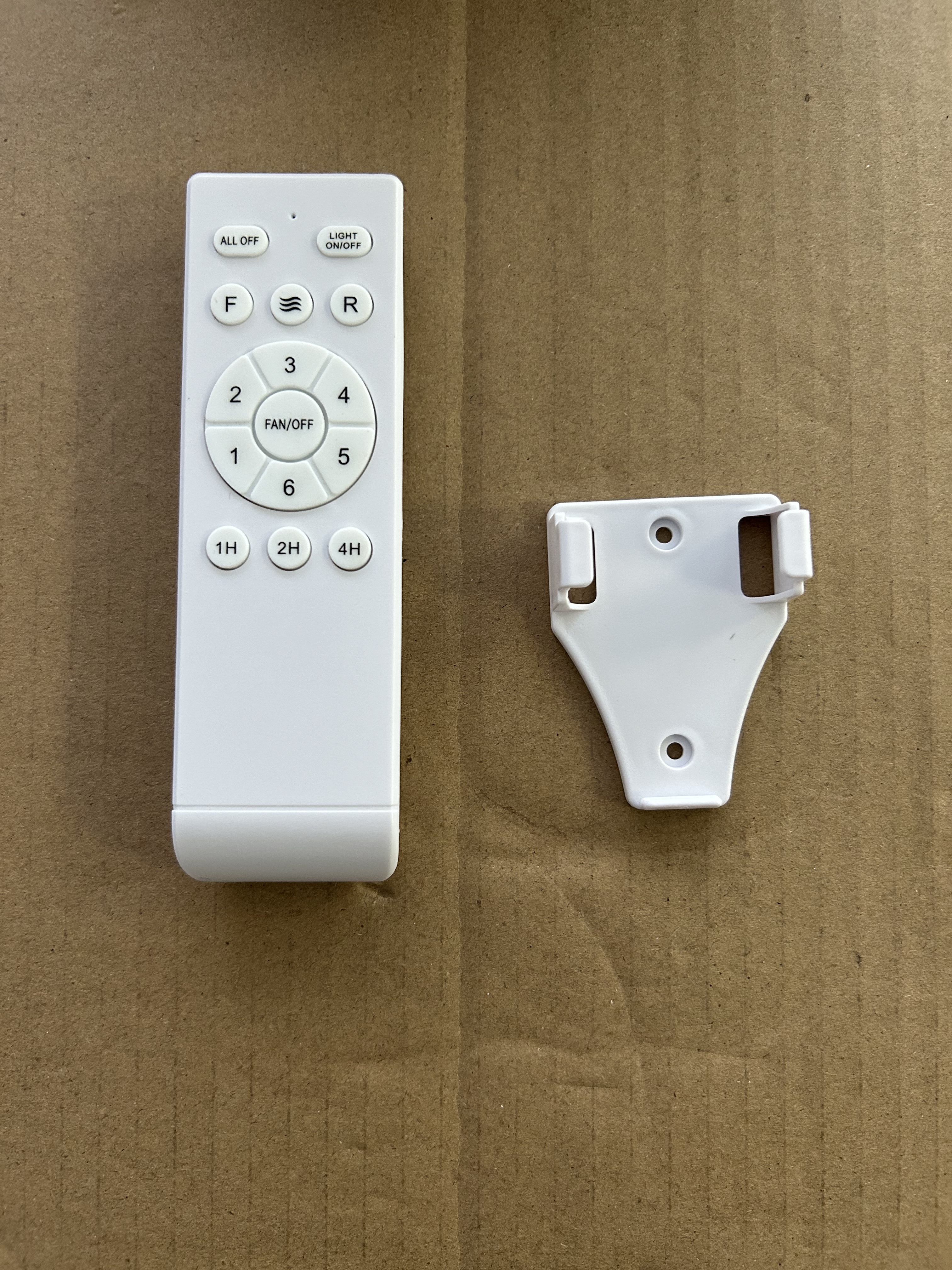

Remote ControlSix speeds, timer and fan/light control.
Control Options
Choose How You Control It

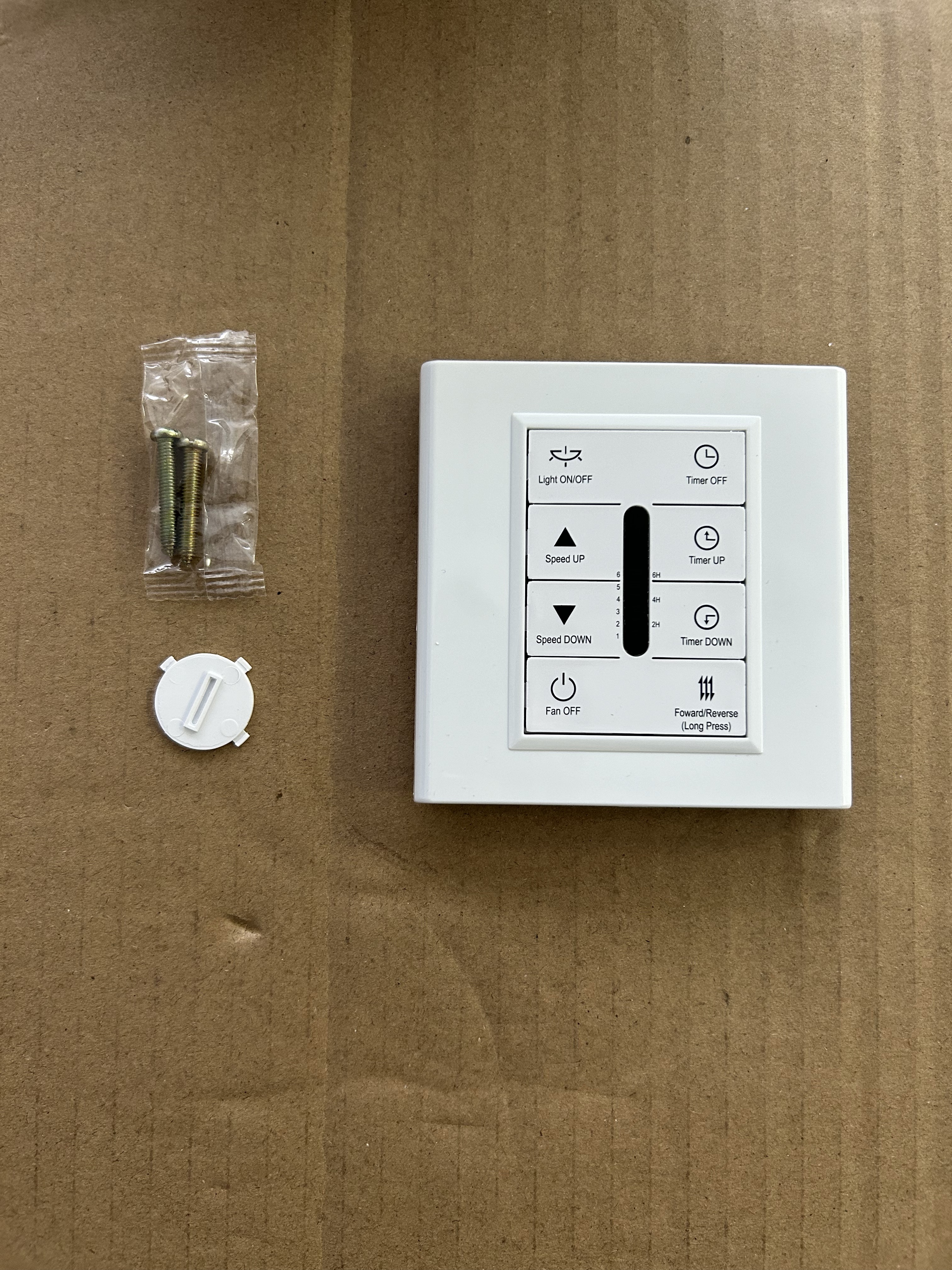

Wall ControlFan and light controls at the wall.
Dual control: remote and wall control are available together. Confirm the chosen hardware with the order.
Color Showcase
Five Shown Finishes
B2B Downrod Ceiling Fan with Light
Wholesale P-5068L-3 Downrod Ceiling Fan with Light
30, 40, 46 or 56 inch · three ABS blades · 35W three-color LED
P-5068L-3 is a three-blade downrod ceiling fan with an integrated light. Kajiapu supplies four sizes, five shown finishes and remote, wall or dual controls for wholesale projects.
- Four Size OptionsChoose 30, 40, 46 or 56 inches.
- 25W–40W DC MotorSix speeds with size-specific RPM.
- 35W Three-Color LEDIntegrated lighting across the range.
- 85–265V · 50Hz · IP44Core electrical and protection specification.
Available Finishes
Five P-5068L-3 Color Options
Compare the supplied product images. Ask Kajiapu to confirm finish samples for an order.
Satin Nickel Wood Grain
Satin-nickel housing with wood-grain blades.

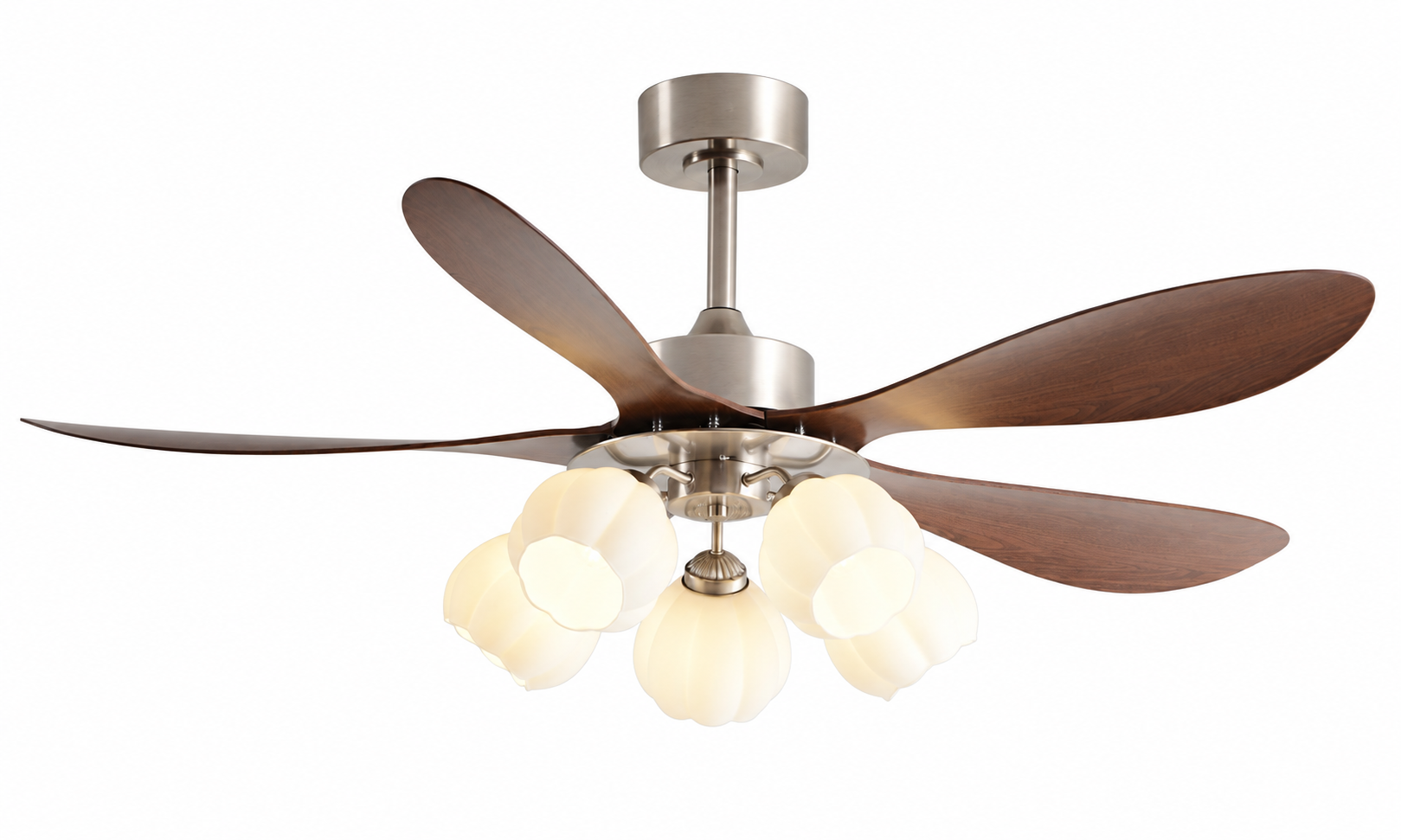

Satin Nickel Walnut
Satin-nickel housing with walnut-tone blades.

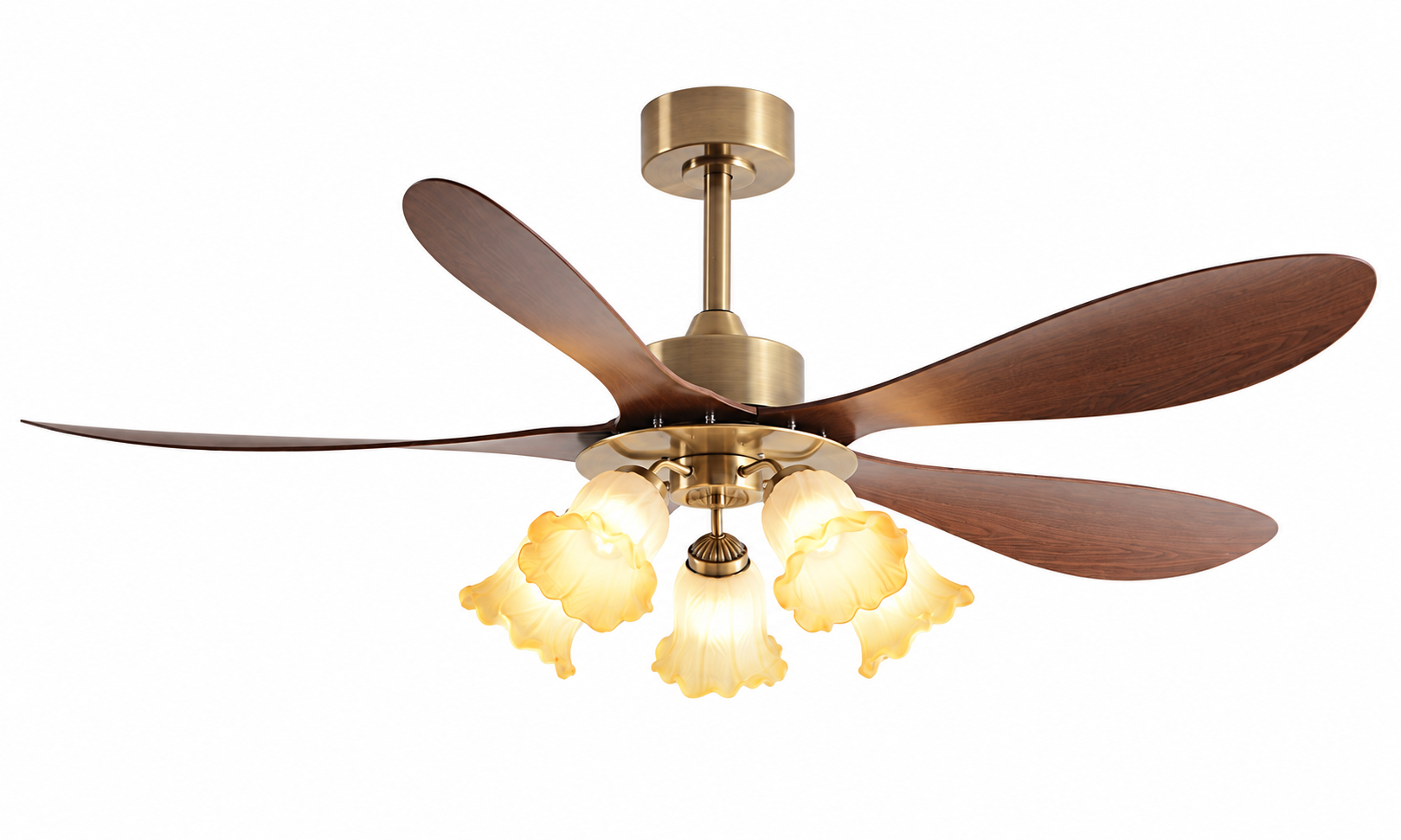

Antique Bronze Walnut
Antique-bronze housing with walnut-tone blades.

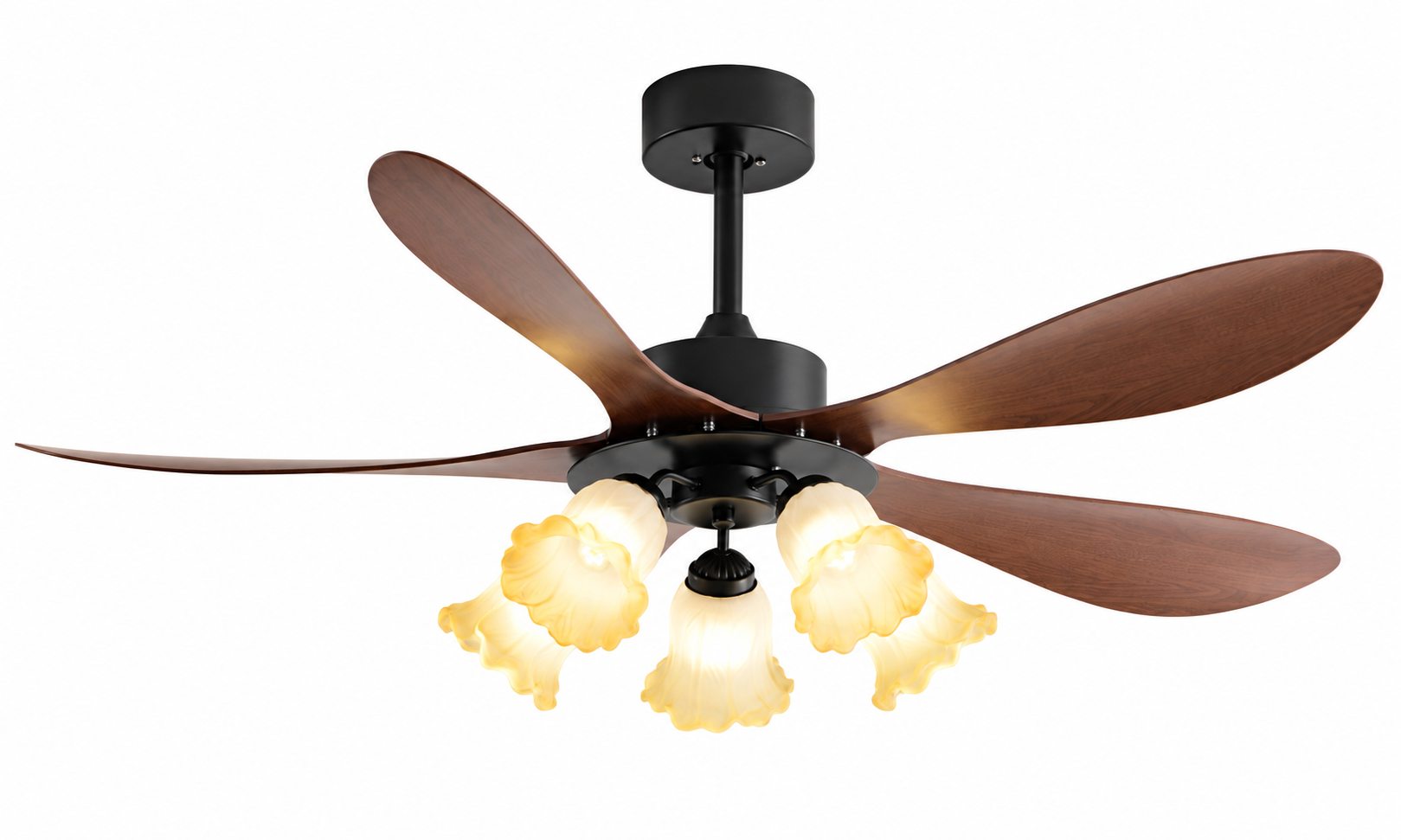

Black Walnut
Black housing with walnut-tone blades.

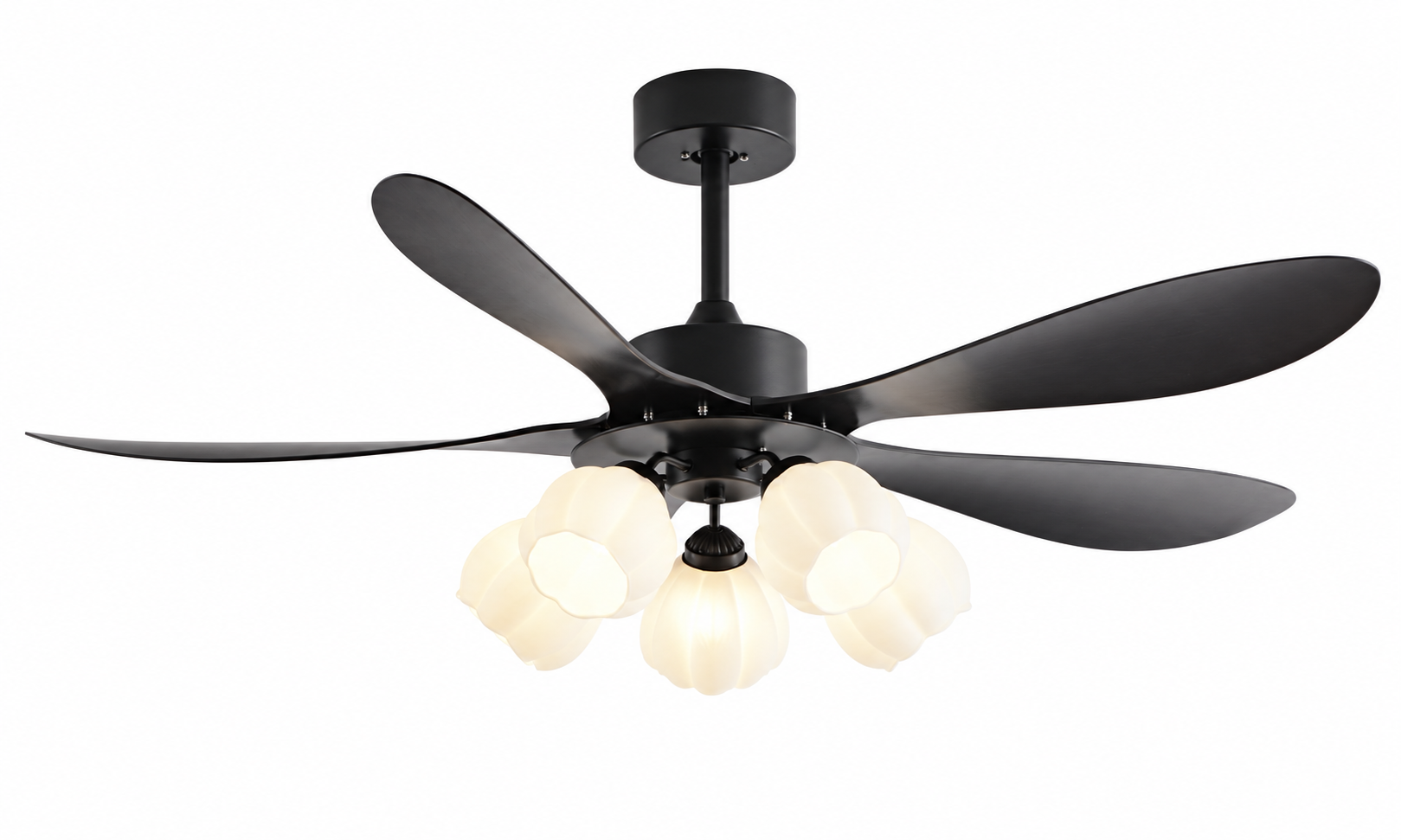

Pure Black
Consistent all-black finish.
Confirmed Product Data
P-5068L-3 Specifications
Figures below follow the supplied product sheet. Confirm the selected size, finish and control configuration before ordering.
Ask about a configuration| Model | P-5068L-3 | Mounting Type | Downrod mount |
|---|---|---|---|
| 30 Inch | 76 cm · 25W motor · 280 RPM · 5–8 m² | ||
| 40 Inch | 100 cm · 38W motor · 215 RPM · 8–13 m² | ||
| 46 Inch | 117 cm · 40W motor · 200 RPM · 12–20 m² | ||
| 56 Inch | 142 cm · 40W motor · 155 RPM · 20–35 m² | ||
| Motor Type | DC motor | Blade Material | ABS · 3 blades |
| Motor Voltage | 85–265V, 50Hz | Ingress Protection | IP44 |
| Speed Settings | 6 speeds | Light | 35W three-color lamp |
| Color Rendering Index | Ra > 80 | Light-Source Voltage | 110V / 220V selectable |
| Control Type | Remote / wall / dual | Timer | 2H / 4H / 6H |
| Overall Height | 45 cm | ||
| Finishes | Satin Nickel Wood Grain, Satin Nickel Walnut, Antique Bronze Walnut, Black Walnut and Pure Black; ask about customization | ||
Size Selection
Choose the Configuration for Your Project
P-5068L-3 has four configurations in the supplied data. Match blade span and listed coverage to the intended space, then confirm installation clearances.
- 30 Inch76 cm · 25W motor · 280 RPM · 5–8 m².
- 40 Inch100 cm · 38W motor · 215 RPM · 8–13 m².
- 46 Inch117 cm · 40W motor · 200 RPM · 12–20 m².
- 56 Inch142 cm · 40W motor · 155 RPM · 20–35 m².
Answers
P-5068L-3 Product FAQ
Key details from the supplied specification sheet.
It is a downrod mount model with a listed overall height of 45 cm.
The supplied sheet lists 30-inch, 40-inch, 46-inch and 56-inch configurations.
Yes. The sheet lists a 35W three-color LED.
The supplied sheet specifies ABS and the product has 3 blades.
Remote, wall and dual control are listed. Confirm the final hardware and button functions for your selected configuration.
The with-light configuration uses an 85–265V, 50Hz motor specification and IP44 protection. The light has a color-rendering index above Ra 80, with 110V or 220V light-source voltage selectable.
Project Inquiry
Request P-5068L-3 Details
Ask Kajiapu about P-5068L-3 sizes, finishes, controls and project requirements. E-mail sales@kajiapu.com, call +86 13087968007. Address: 3rd Floor, Building 1, Shengqiu Industrial Park, Guzhen Town, Zhongshan, Guangdong, China 528400.
