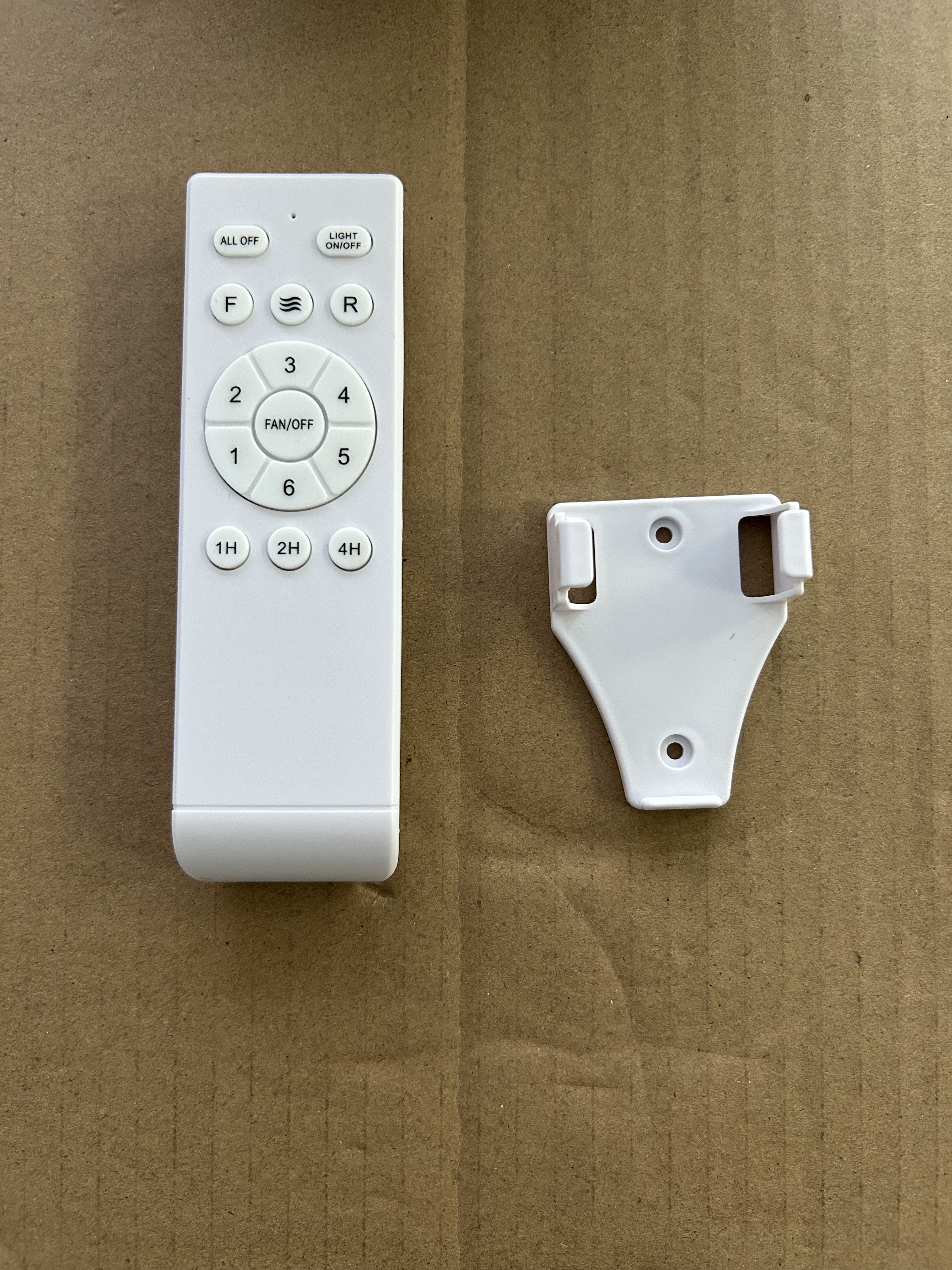

Remote ControlSix speeds, timer and fan/light control.
Control Options
Choose How You Control It

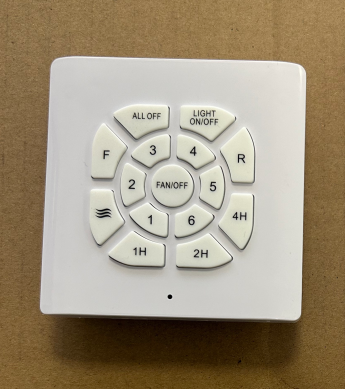

Wall ControlFan and light controls at the wall.
Dual control: remote and wall control are available together. Confirm the chosen hardware with the order.
Color Showcase
Five Shown Finishes
B2B Downrod Ceiling Fan with Light
Wholesale P-5035-5L Downrod Ceiling Fan with Light
40, 46 or 56 inch · five ABS blades · 100W light
P-5035-5L is a five-blade downrod ceiling fan with an integrated 100W light. Kajiapu supplies three sizes, five shown finishes and remote, wall or dual controls for wholesale projects.
- Three Size Options40, 46 or 56 inch.
- 38W / 40W DC MotorSix speed settings.
- 100W LightIntegrated lighting for all listed sizes.
- 85–265V · 50Hz · IP44Core electrical and protection specification.
Available Finishes
Five P-5035-5L Color Options
Compare the supplied product images. Ask Kajiapu to confirm finish samples for an order.
Pure White
A clean all-white configuration.

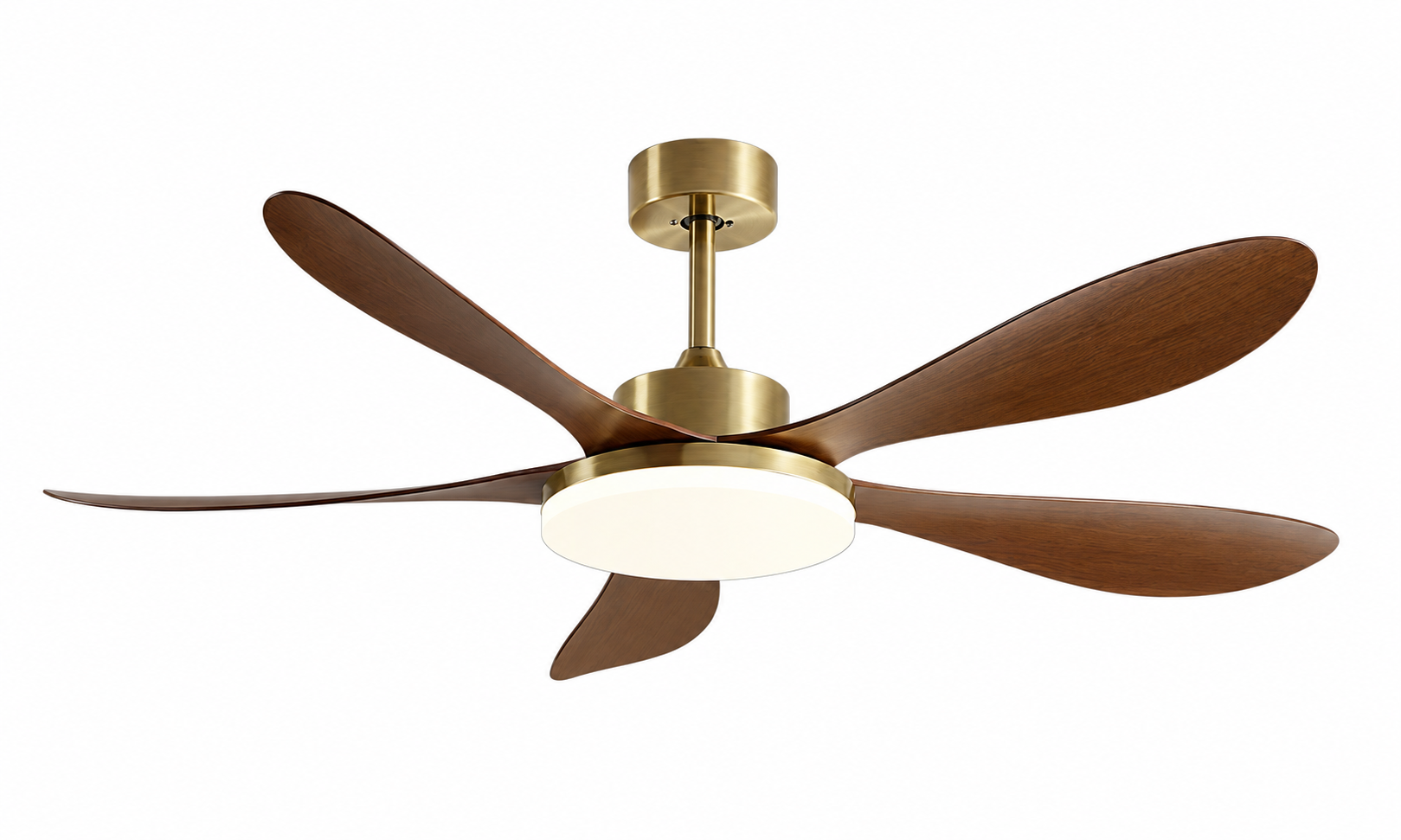

Antique Bronze Walnut
Antique-bronze housing with walnut-tone blades.

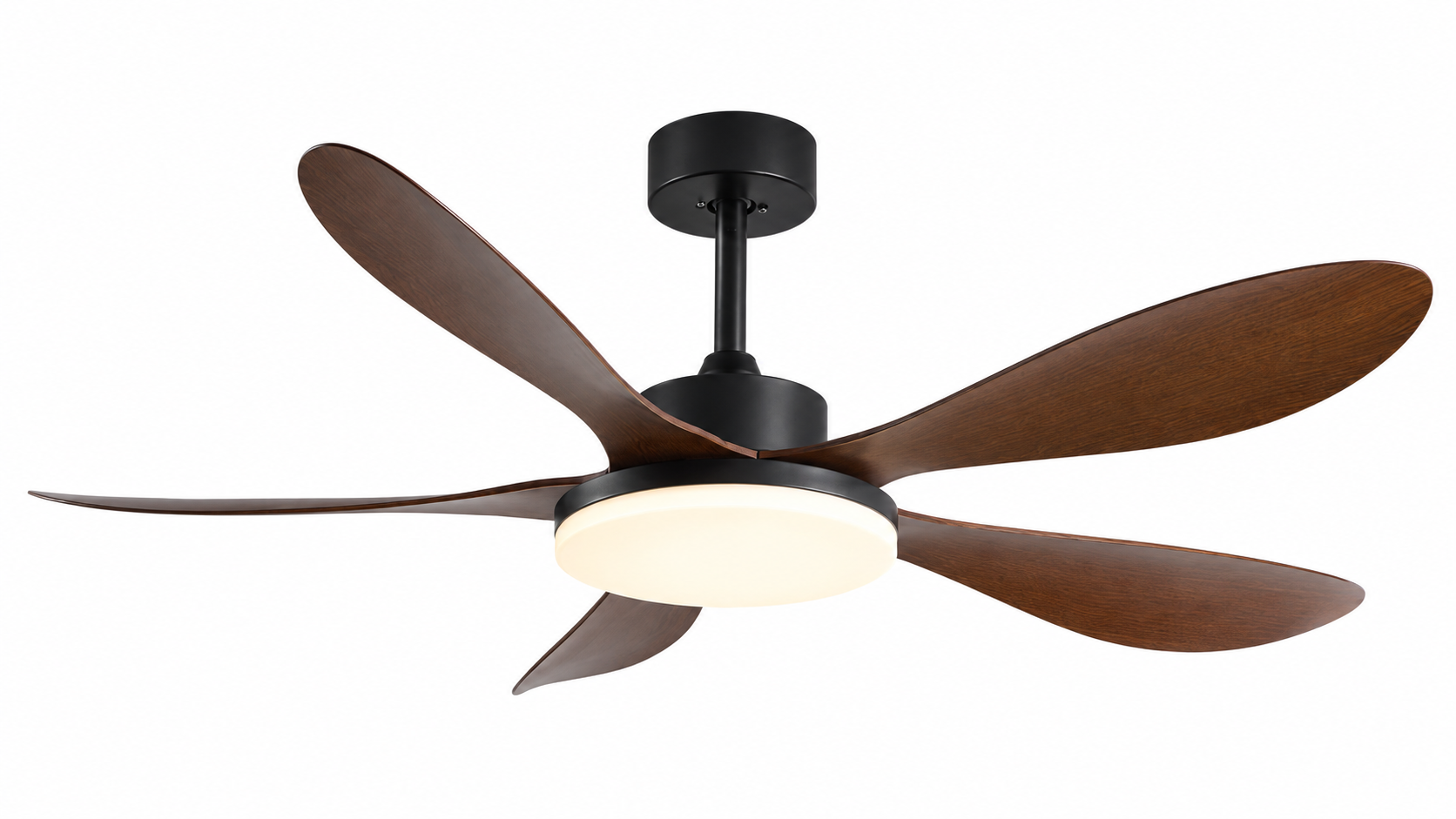

Black Walnut
Black housing with walnut-tone blades.

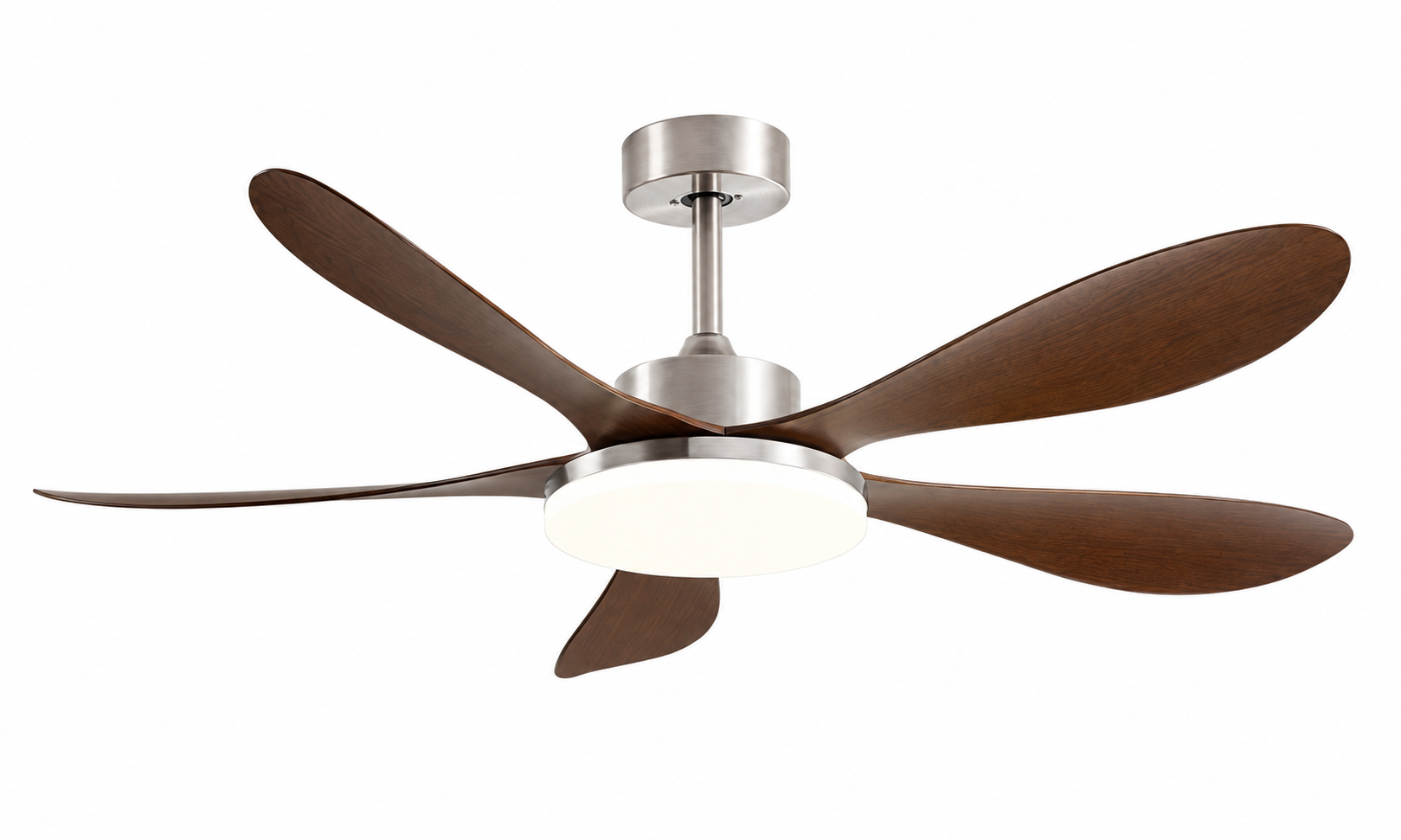

Satin Nickel Walnut
Satin-nickel housing with walnut-tone blades.

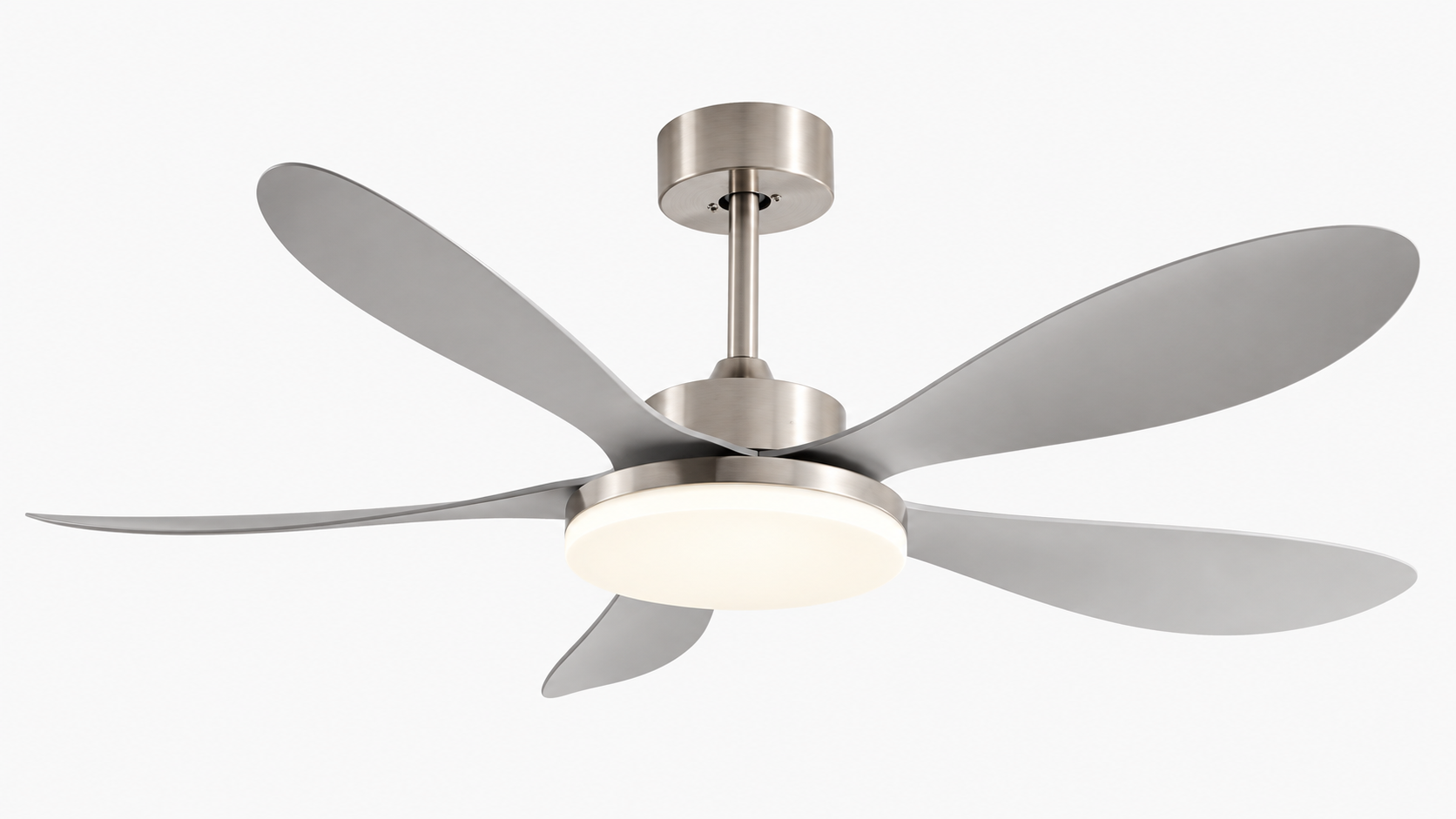

Satin Nickel Gray
Satin-nickel housing with gray blades.
Confirmed Product Data
P-5035-5L Specifications
Figures below follow the supplied product sheet. Confirm the selected size, finish and control configuration before ordering.
Ask about a configuration| Model | P-5035-5L | Mounting Type | Downrod mount |
|---|---|---|---|
| 40 Inch | 102 cm · 6.4 kg gross · 38W motor · 215 RPM · 8–12 m² | ||
| 46 Inch | 116 cm · 7.1 kg gross · 40W motor · 200 RPM · 10–15 m² | ||
| 56 Inch | 142 cm · 8.2 kg gross · 40W motor · 155 RPM · 15–25 m² | ||
| Motor Type | DC motor | Blade Material | ABS · 5 blades |
| Motor Voltage | 85–265V, 50Hz | Ingress Protection | IP44 |
| Speed Settings | 6 speeds | Light | 100W |
| Color Rendering Index | Ra > 80 | Light-Source Voltage | 110V / 220V selectable |
| Control Type | Remote / wall / dual | Timer | 2H / 4H / 6H |
| Overall Height | 35 / 42.5 cm | ||
| Finishes | Pure White, Antique Bronze Walnut, Black Walnut, Satin Nickel Walnut and Satin Nickel Gray; ask about customization | ||
Size Selection
Choose the Configuration for Your Project
P-5035-5L has three configurations in the supplied data. Match blade span and listed coverage to the intended space, then confirm installation clearances.
- 40 Inch102 cm · 6.4 kg gross · 38W motor · 215 RPM · 8–12 m².
- 46 Inch116 cm · 7.1 kg gross · 40W motor · 200 RPM · 10–15 m².
- 56 Inch142 cm · 8.2 kg gross · 40W motor · 155 RPM · 15–25 m².
Answers
P-5035-5L Product FAQ
Key details from the supplied specification sheet.
It is a downrod mount model with listed overall-height configurations of 35 and 42.5 cm.
The supplied sheet lists 40-inch, 46-inch and 56-inch configurations.
Yes. The supplied sheet lists a 100W light.
The supplied sheet specifies ABS and the images show 5 blades.
Remote, wall and dual control are listed. Confirm the final hardware and button functions for your selected configuration.
The with-light configuration uses an 85–265V, 50Hz motor specification and IP44 protection. The light has a color-rendering index above Ra 80, with 110V or 220V light-source voltage selectable.
