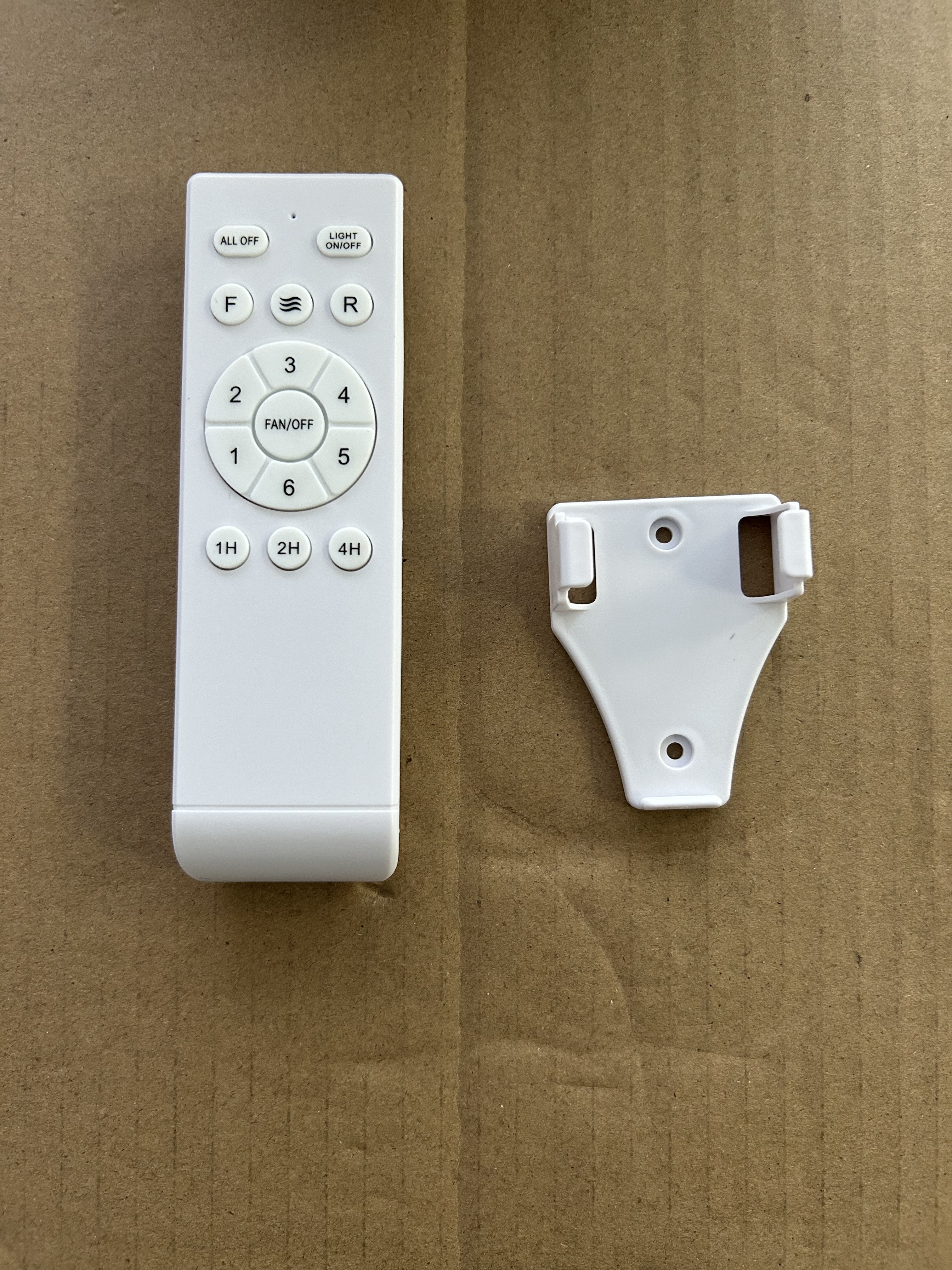

Remote ControlSix-speed control with timer functions.
Control Options
Choose How You Control It

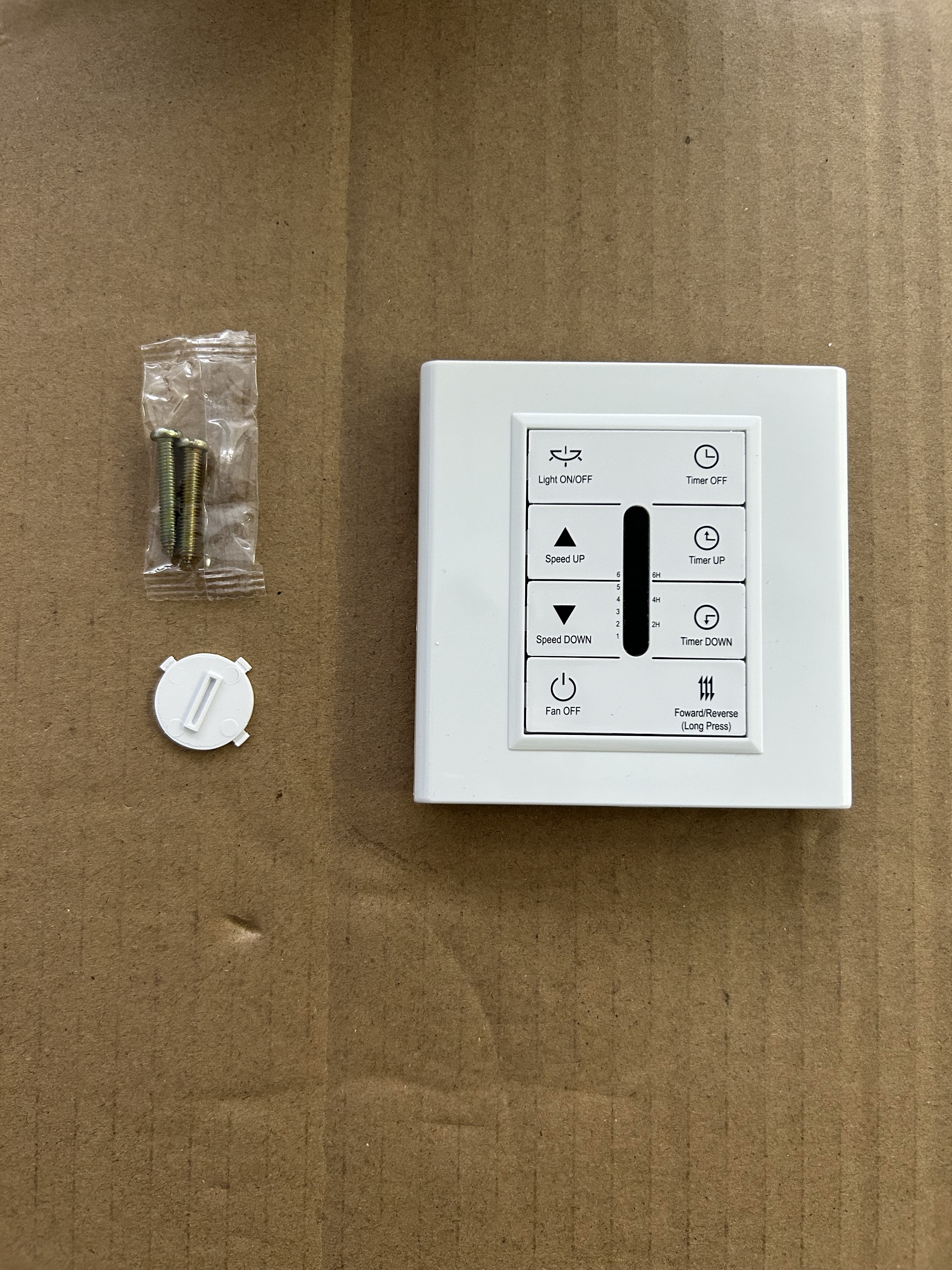

Wall ControlWall-mounted control option.
Dual control: remote and wall operation are listed in the supplied sheet. Hardware images are for configuration reference; confirm final button functions before ordering.
Color Showcase
6 Supplied Finishes
B2B Low Profile Ceiling Fan · No Light
Wholesale K-103X-3 Low Profile Ceiling Fan
42 / 52 inch · three blades · fan only
K-103X-3 is a three-blade low profile ceiling fan with ABS wood blades and no integrated light. The supplied sheet lists 2 configurations, 6 pictured finishes and remote, wall or dual control for wholesale projects.
- 2 Configurations42 / 52 inch.
- ABS wood Bladesthree blades as pictured.
- No Integrated LightFan-only model.
- Overall Height23 cm.
Available Finishes
6 K-103X-3 Color Options
Compare the supplied product images. Ask Kajiapu to confirm finish samples for an order.

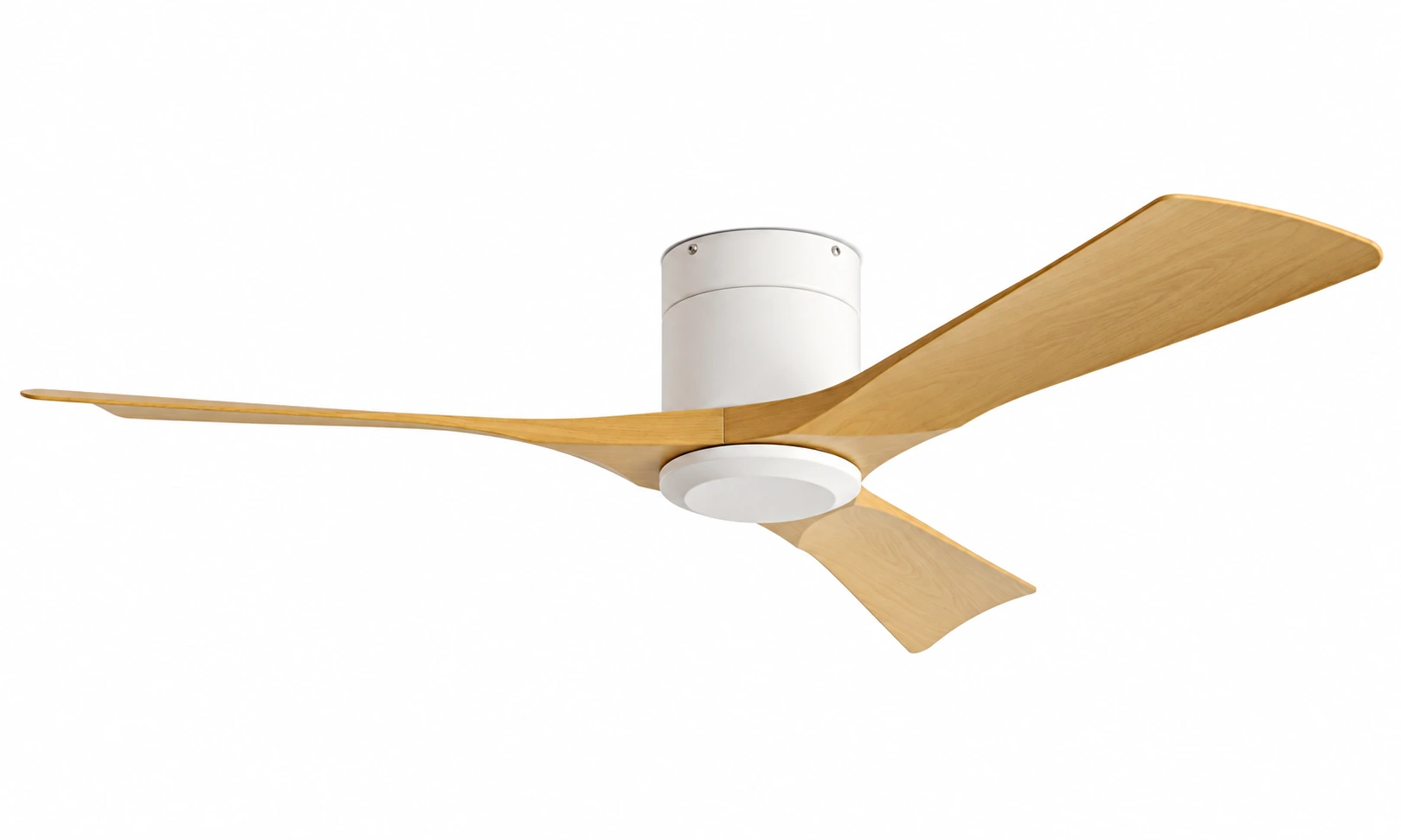

White Wood Grain
Supplied white wood grain product image.

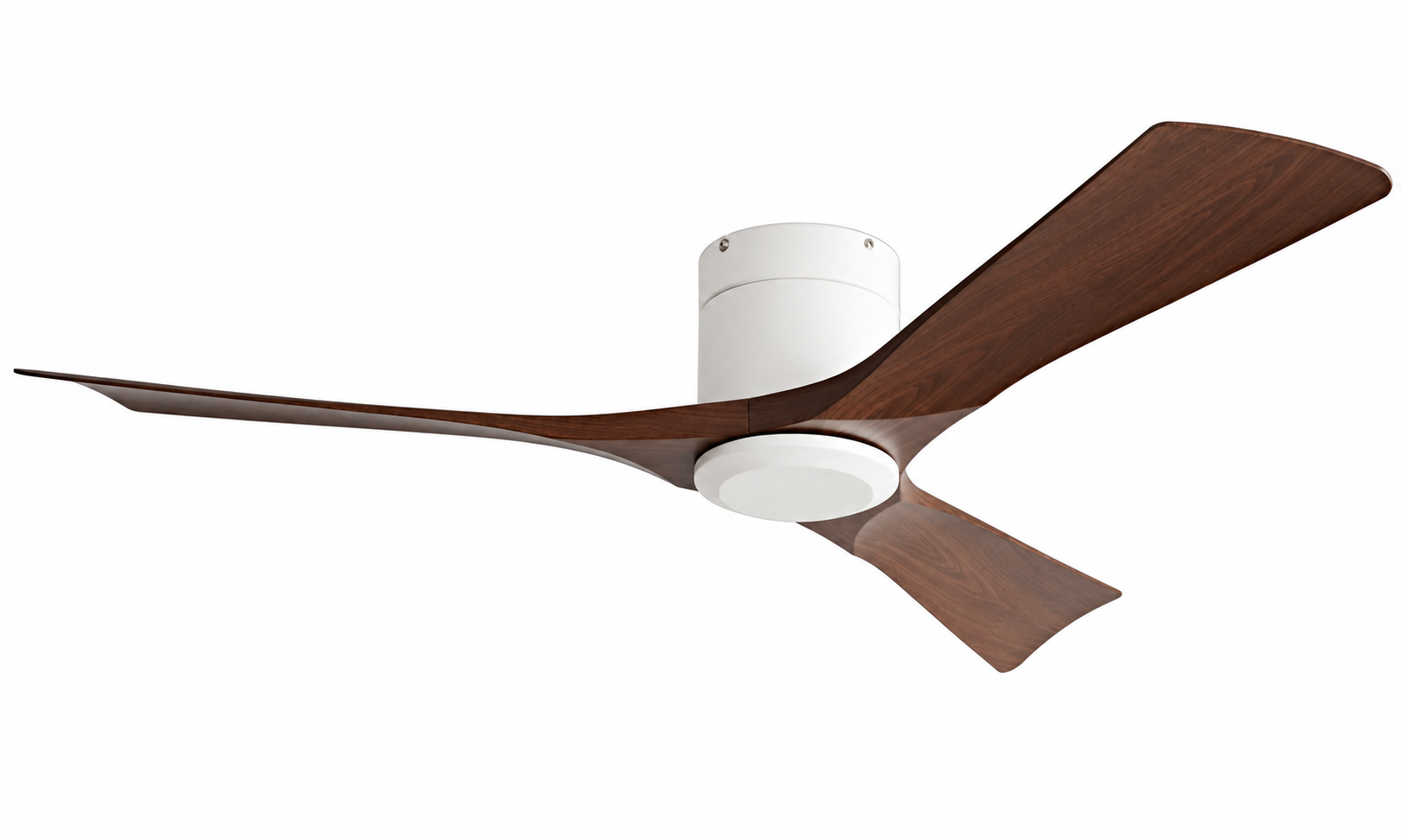

White Walnut
Supplied white walnut product image.

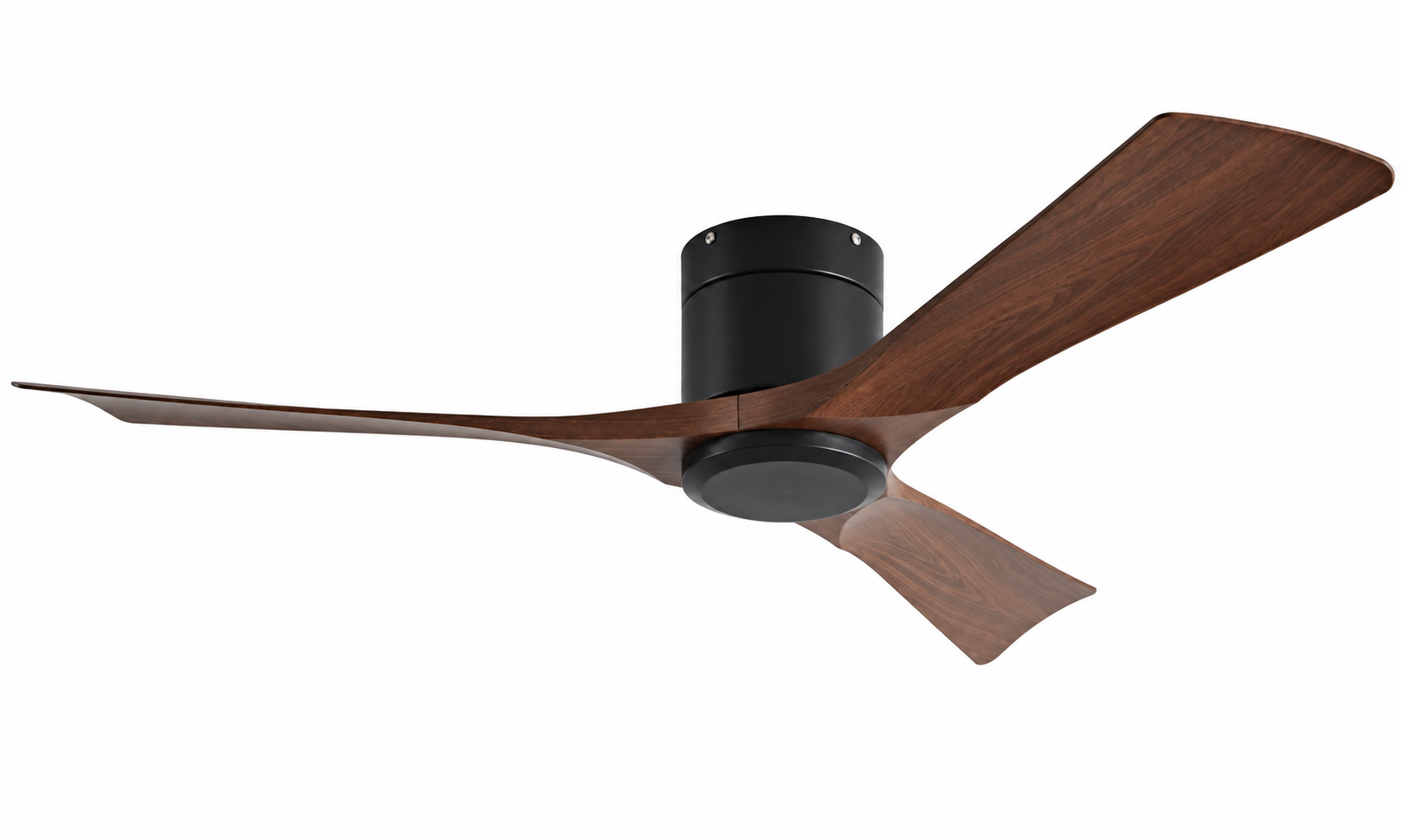

Black Walnut
Supplied black walnut product image.

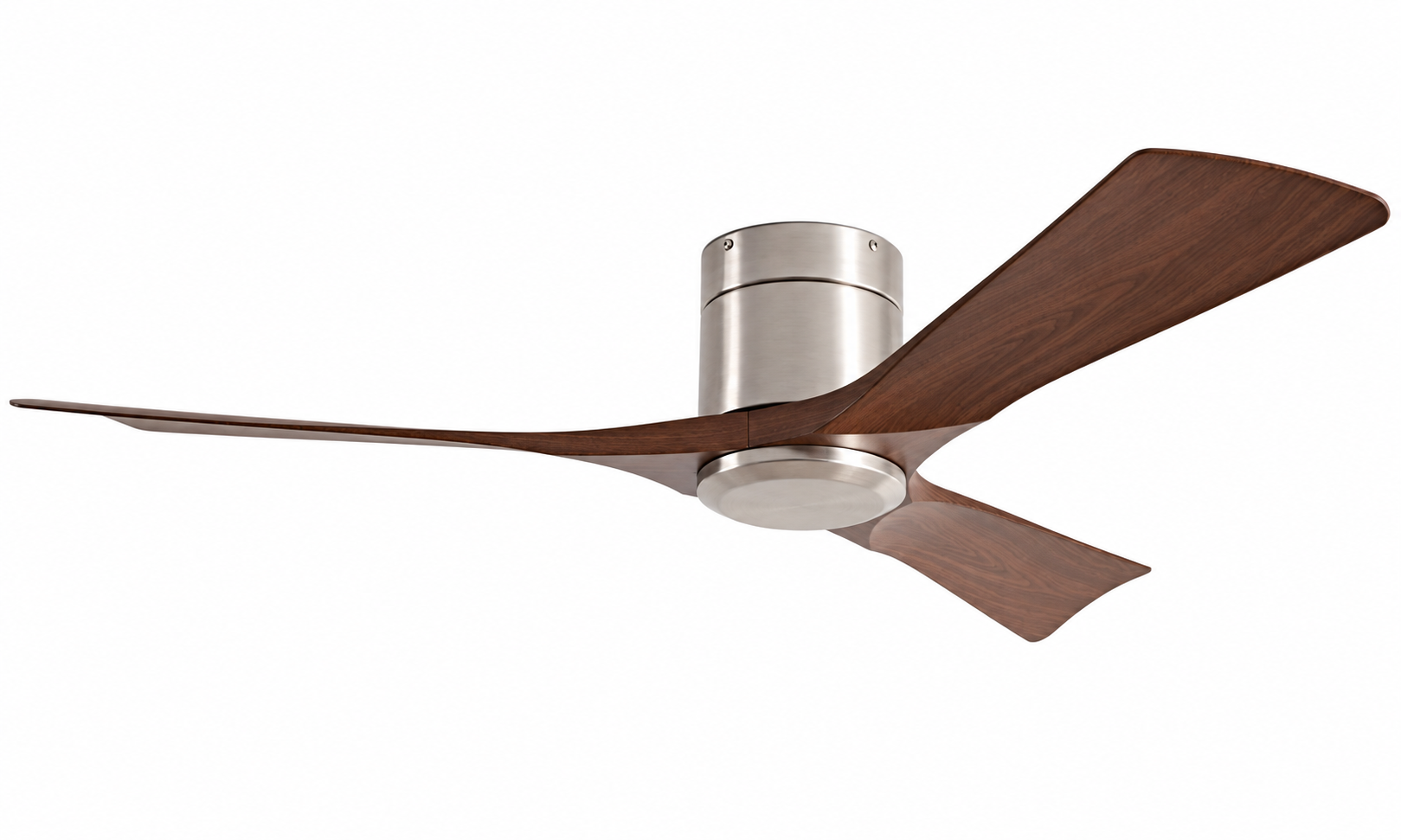

Satin Nickel Walnut
Supplied satin nickel walnut product image.

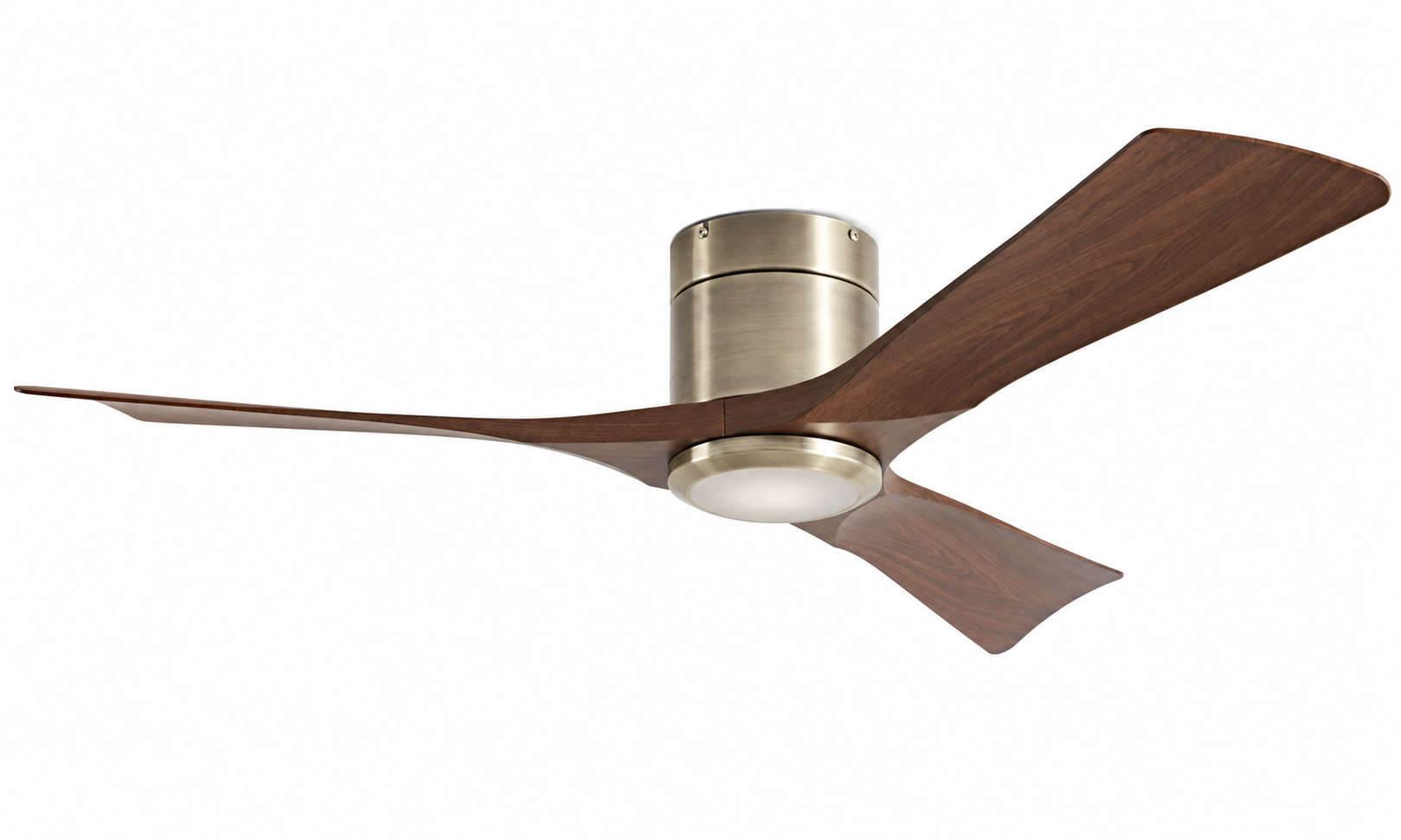

Antique Bronze Walnut
Supplied antique bronze walnut product image.

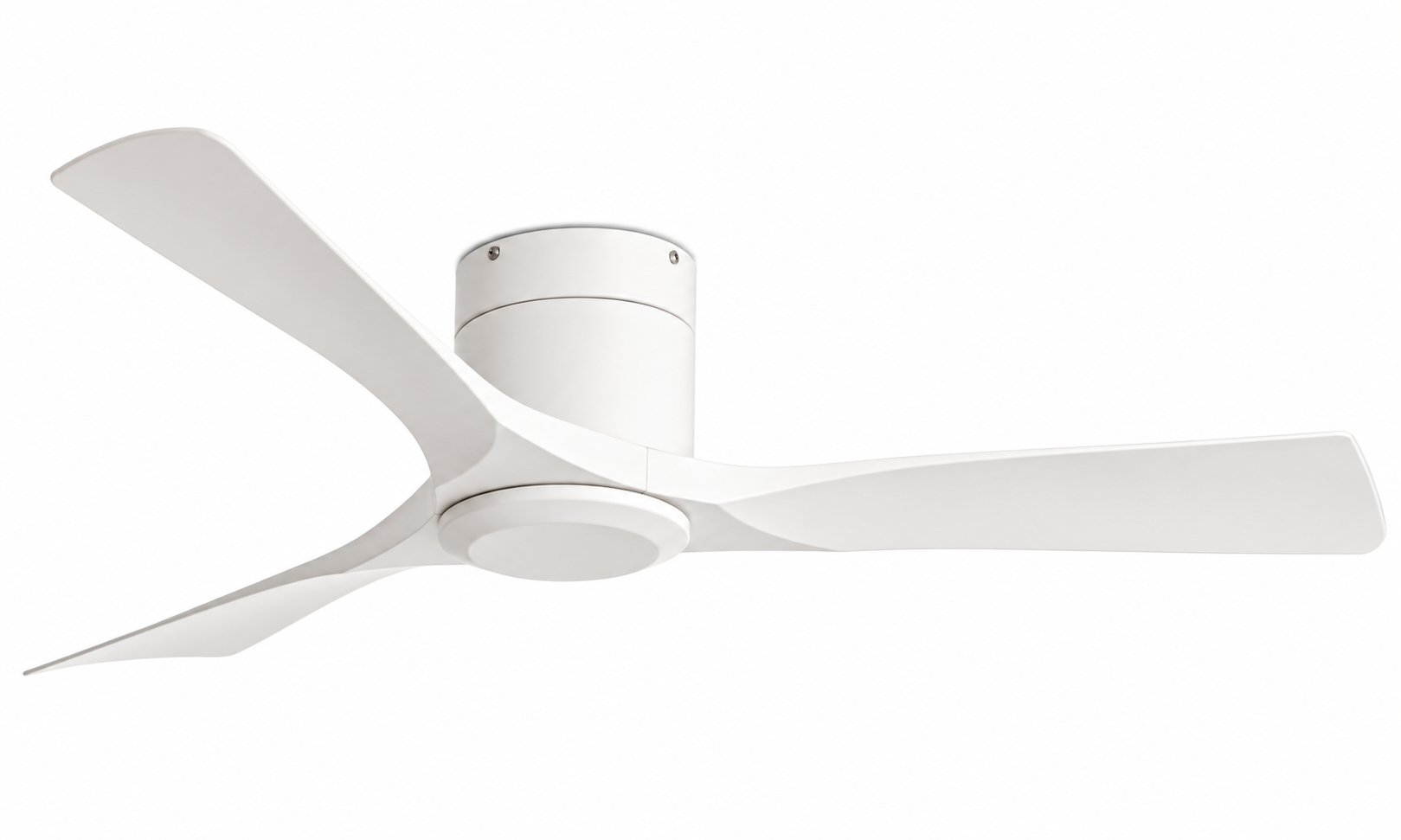

Pure White
Supplied pure white product image.
Product Data
K-103X-3 Specifications
Figures below follow the supplied product sheet. Confirm the selected size, finish and control configuration before ordering.
Ask about a configuration| Model | K-103X-3 | Mounting Type | Flush mount / low profile |
|---|---|---|---|
| 42 Inch | 106 cm · 5.2 kg gross · 30W motor · 241 RPM · 6–12 m² | ||
| 52 Inch | 132 cm · 5.9 kg gross · 35W motor · 200 RPM · 10–20 m² | ||
| Motor Type | DC motor | Blade Material | ABS wood · 3 blades |
| Speed Settings | 6 speeds | Light | Not included |
| Control Type | Remote / wall / dual | Timer | 2H / 4H / 6H |
| Overall Height | 23 cm | ||
| Finishes | White Wood Grain, White Walnut, Black Walnut, Satin Nickel Walnut, Antique Bronze Walnut, Pure White; ask about customization | ||
Size Selection
Choose the Configuration for Your Project
K-103X-3 has 2 configurations in the supplied data. Match blade span and listed coverage to the intended space, then confirm installation clearances.
- 42 Inch106 cm · 5.2 kg gross · 30W motor · 241 RPM · 6–12 m².
- 52 Inch132 cm · 5.9 kg gross · 35W motor · 200 RPM · 10–20 m².
Answers
K-103X-3 Product FAQ
Key details from the supplied specification sheet.
It is a flush mount / low profile model. The supplied sheet lists an overall height of 23 cm.
The supplied sheet lists 42 / 52 inch.
No. The sheet lists LED as not applicable.
The supplied sheet specifies ABS wood and the images show 3 blades.
Remote, wall and dual control are listed. Confirm the final hardware and button functions for your selected configuration.
Project Inquiry
Request K-103X-3 Details
Ask Kajiapu about K-103X-3 sizes, finishes, controls and project requirements. E-mail sales@kajiapu.com, call +86 13087968007. Address: 3rd Floor, Building 1, Shengqiu Industrial Park, Guzhen Town, Zhongshan, Guangdong, China 528400.
