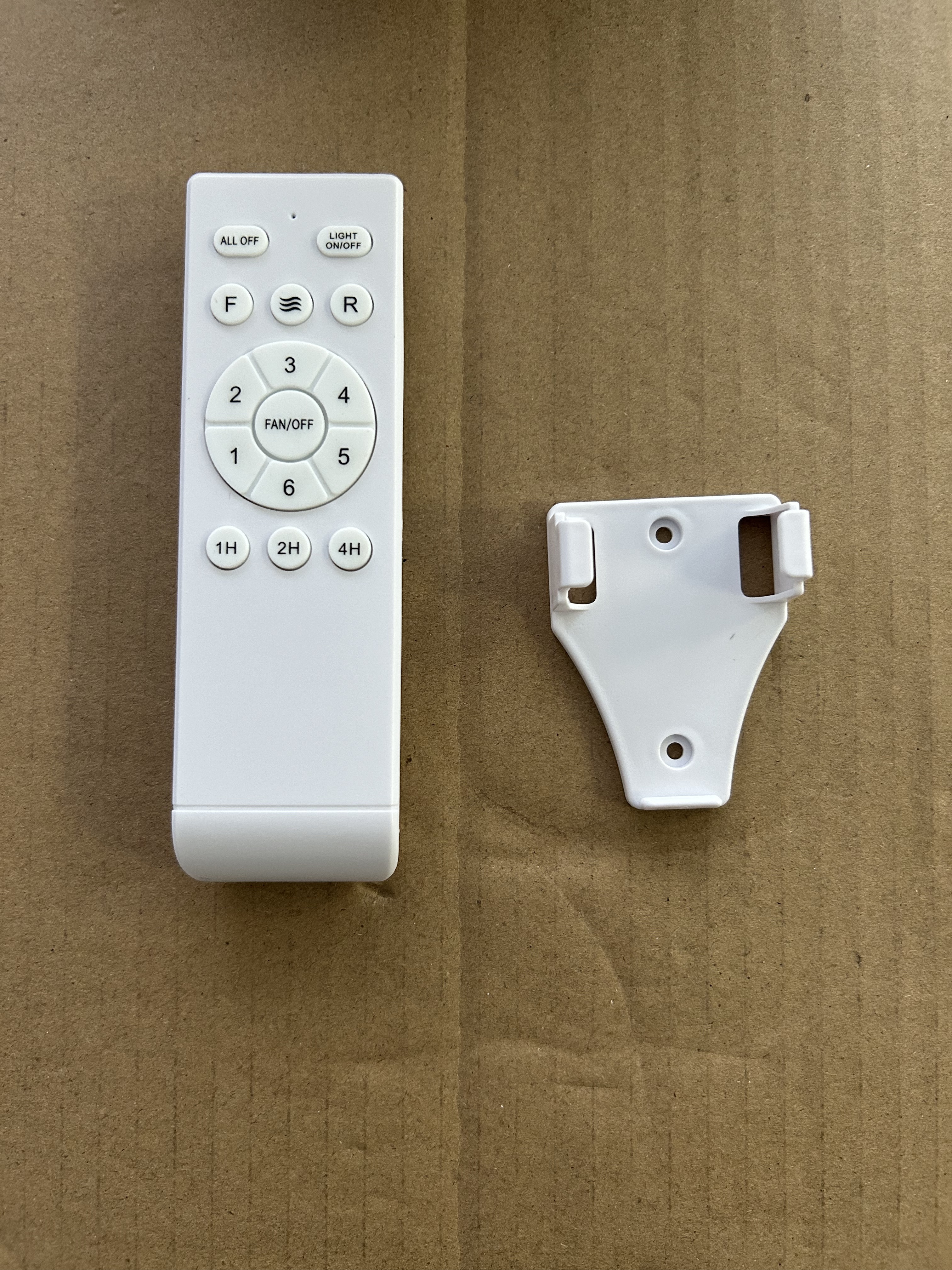

Remote ControlSix speeds, timer and forward/reverse control.
Control Options
Choose How You Control It

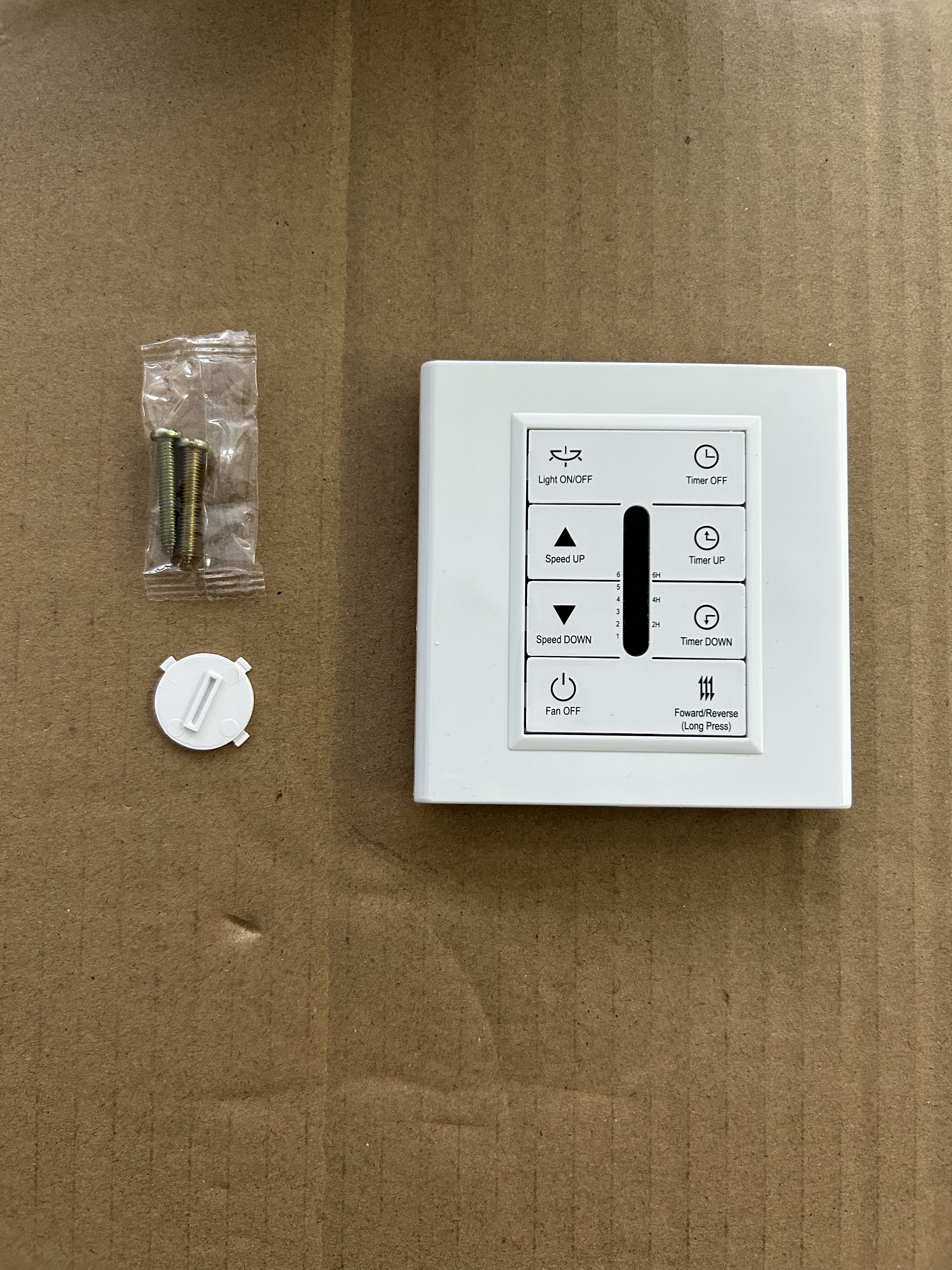

Wall ControlSpeed, timer and direction controls at the wall.
Dual Control: combine remote and wall operation. Hardware shown is for configuration reference; final button functions follow the confirmed no-light specification.
Color Showcase
Eight Available Finishes
B2B Low Profile Fan
Wholesale K-017-3 Low Profile Ceiling Fan
45 or 52 inch · DC motor · fan only
K-017-3 is a three-blade flush mount ceiling fan for rooms that need a compact 17.5 cm overall height without an integrated light. As a ceiling fan manufacturer, Kajiapu supplies this model in two sizes and multiple finishes for wholesale product programs.
- Two Size OptionsChoose a 45 inch or 52 inch blade span for the intended room area.
- Six-Speed DC Motor35W for the 45 inch option and 38W for the 52 inch option.
- 85–265V · 50HzWide-range motor voltage for the no-light configuration.
- IP44 ProtectionThe no-light version has an IP44 ingress-protection rating.
Available Finishes
Eight K-017-3 Color Options
Review the current visual options below. Additional color requirements can be discussed with the Kajiapu sales team.

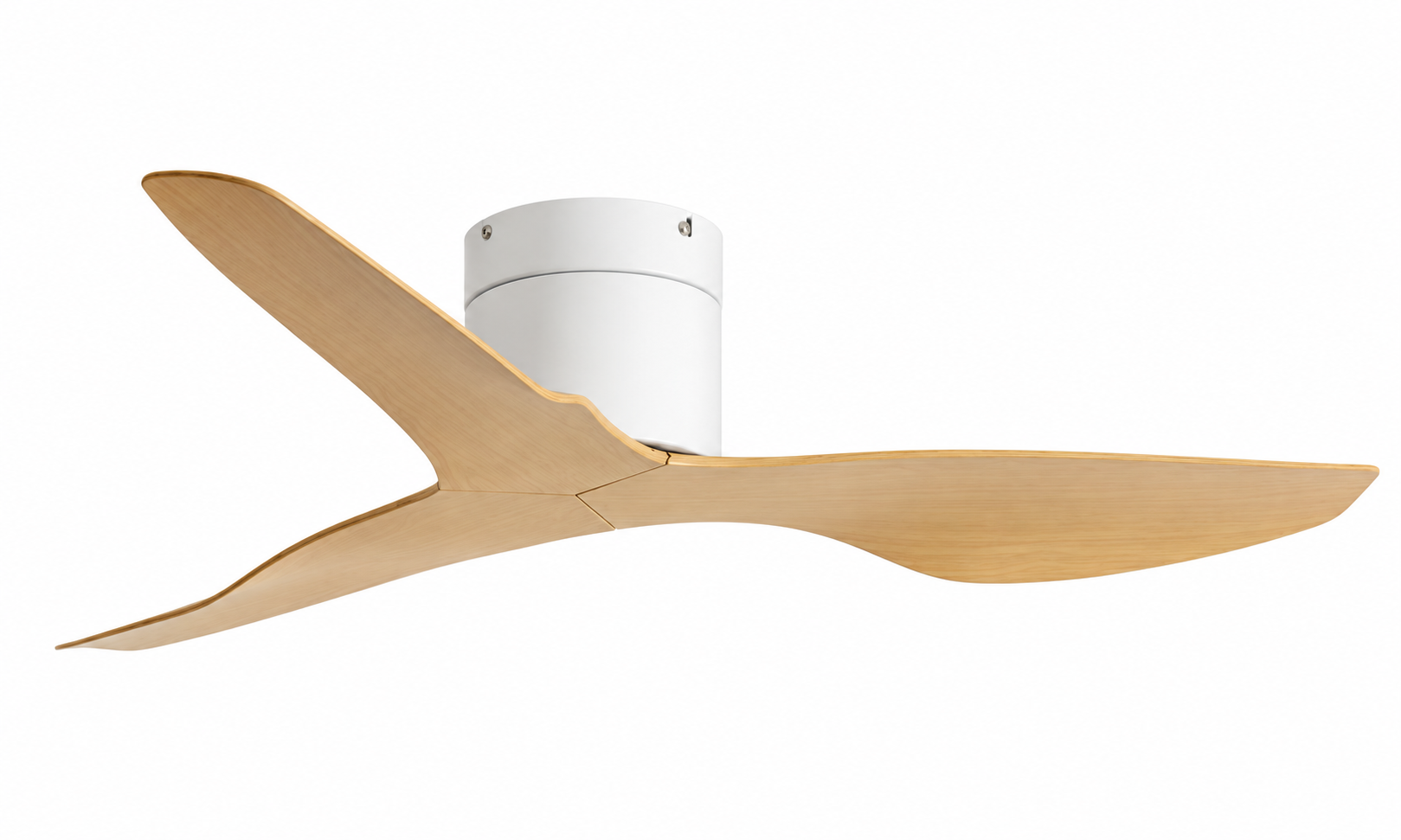

White Wood Grain
White motor housing with a light wood-grain blade finish.

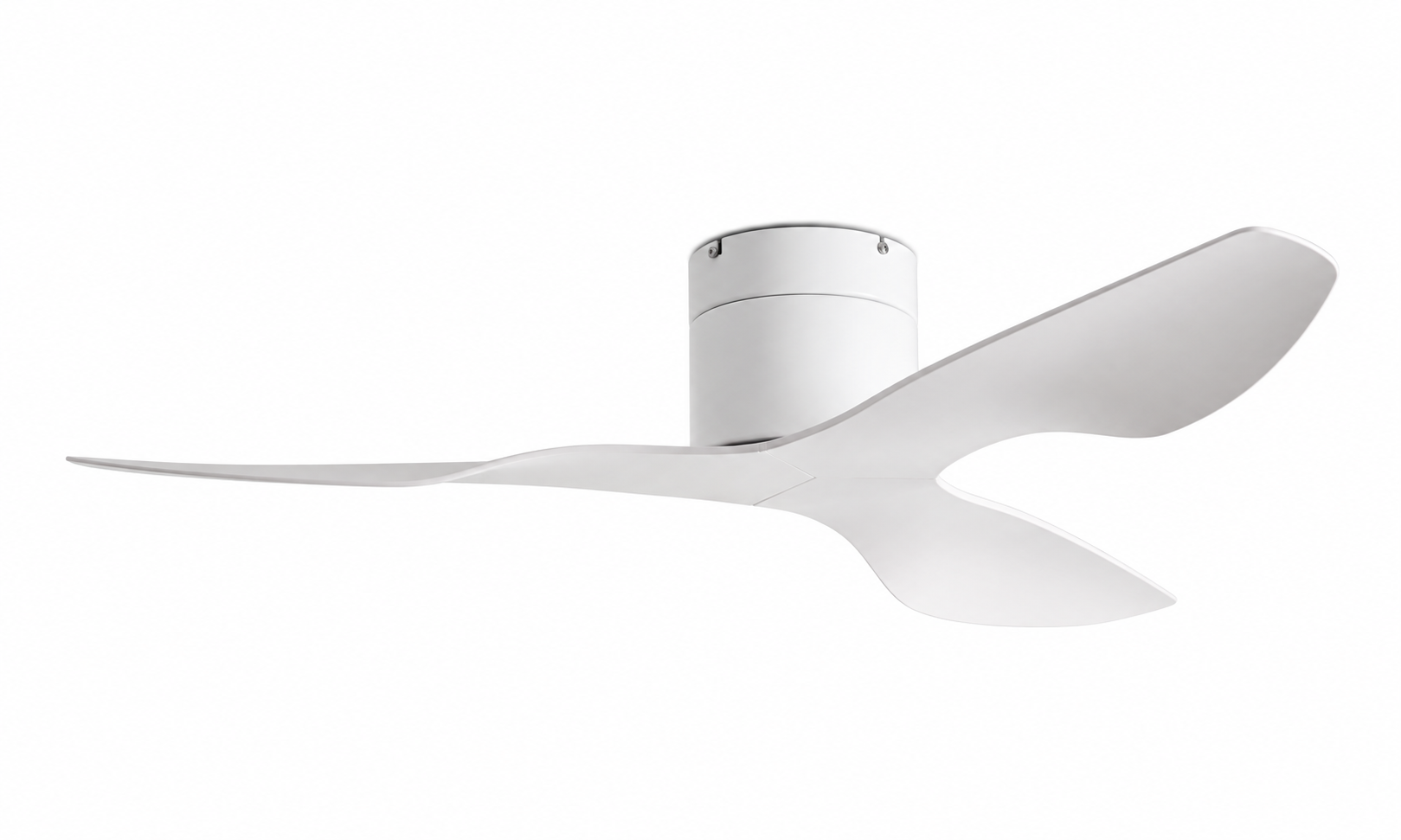

Pure White
A clean, single-color white configuration.

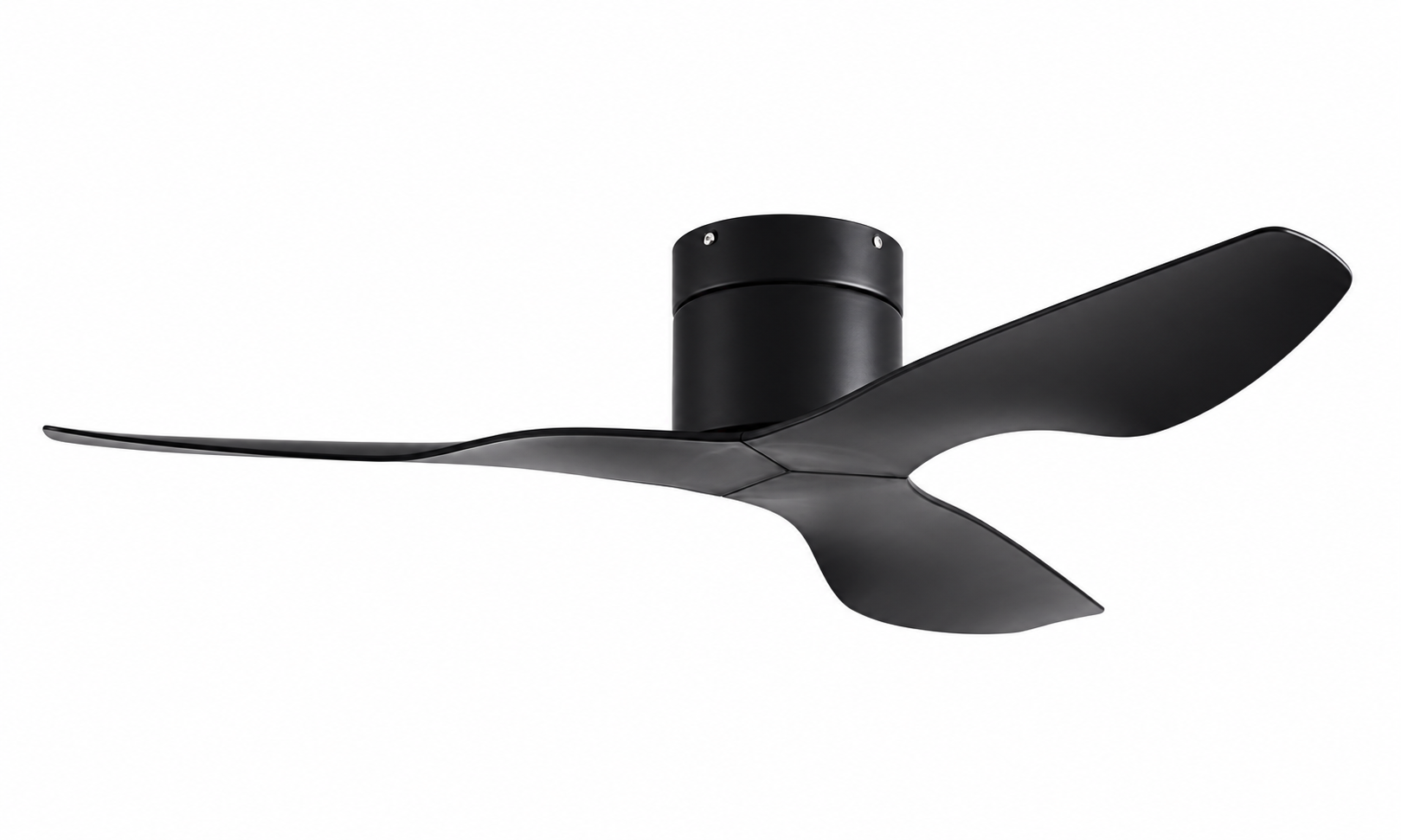

Pure Black
A clean, single-color black configuration.

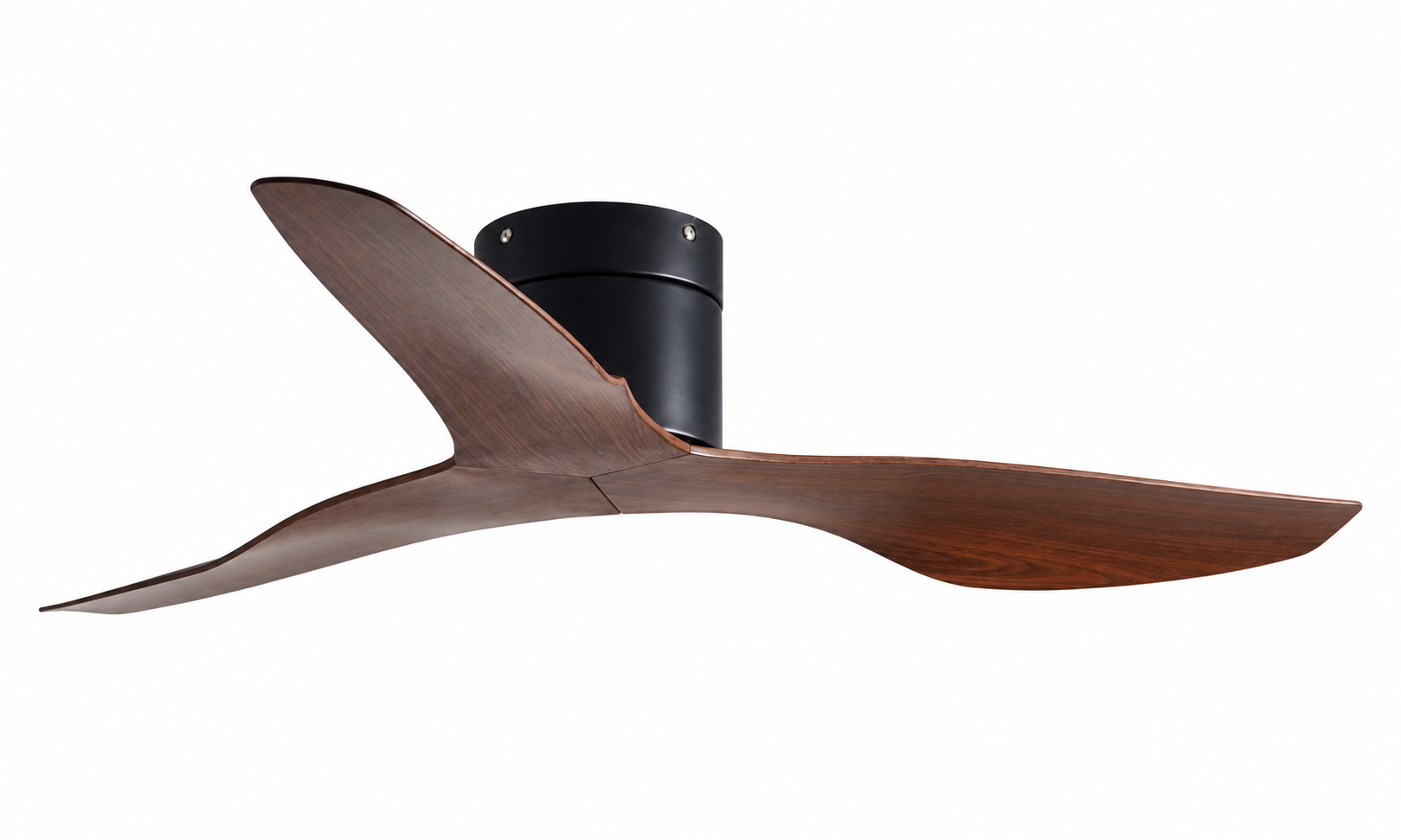

Black Walnut
Black housing paired with walnut-tone blades.

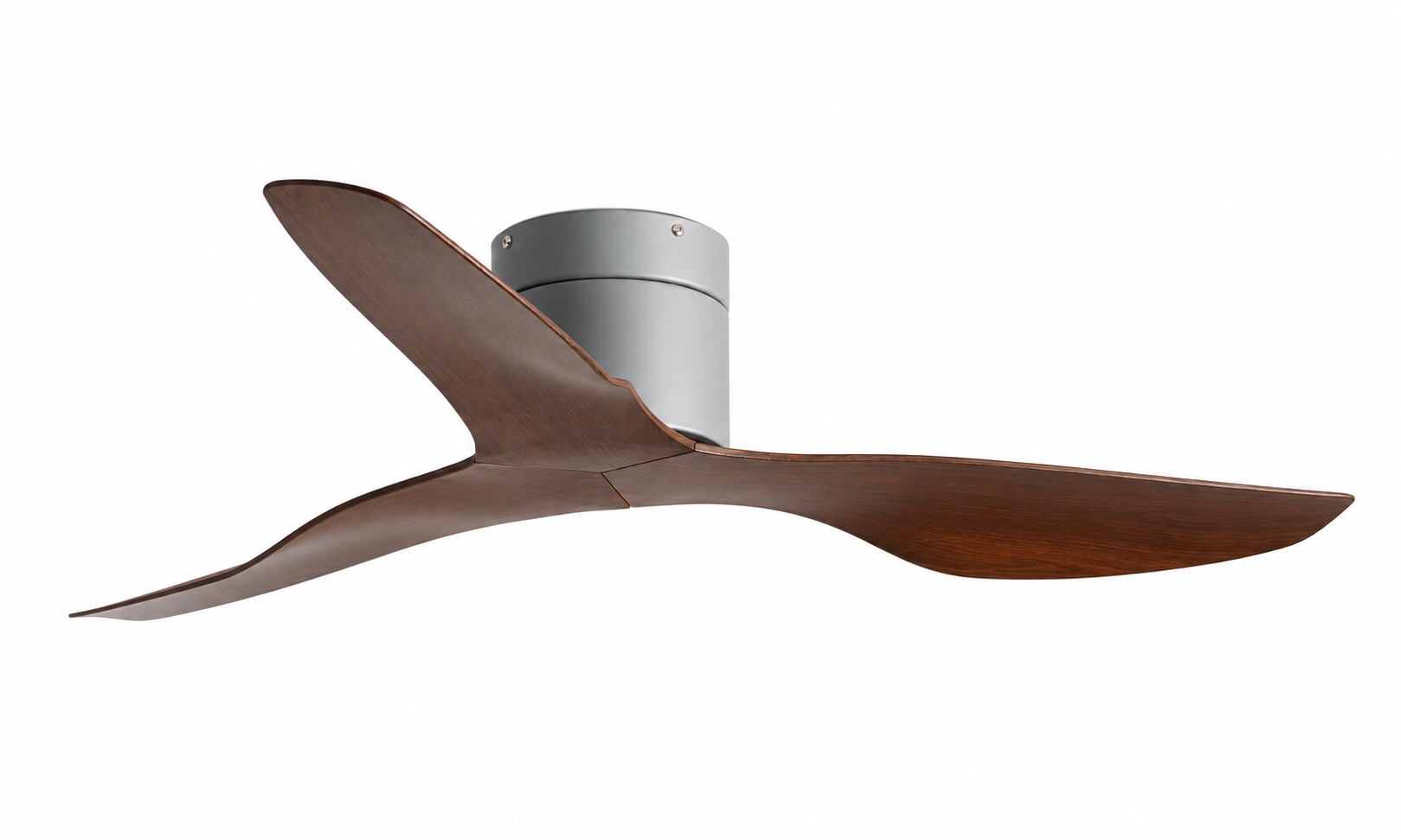

Gray Walnut
Gray housing paired with walnut-tone blades.

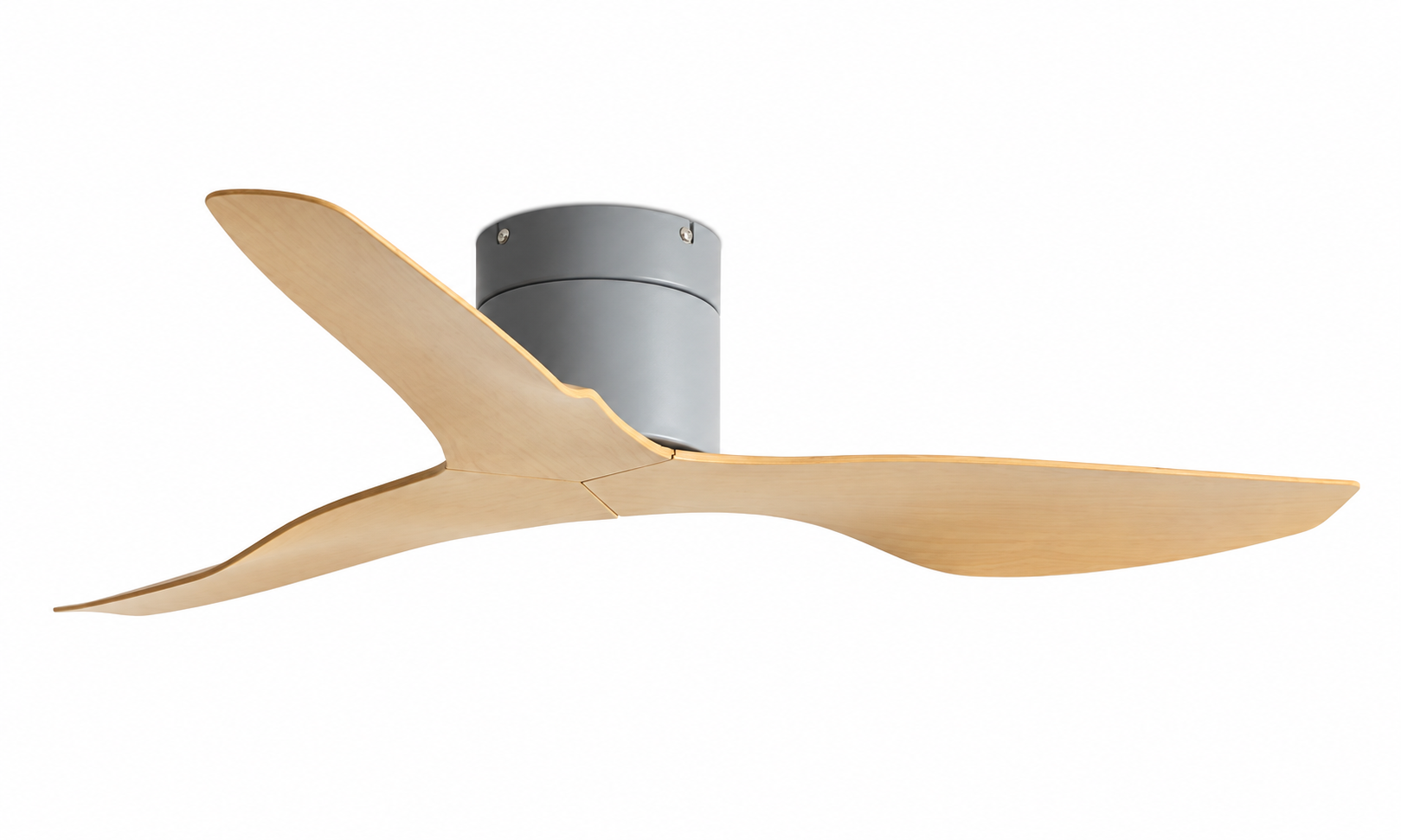

Gray Wood Grain
A coordinated gray wood-grain appearance.

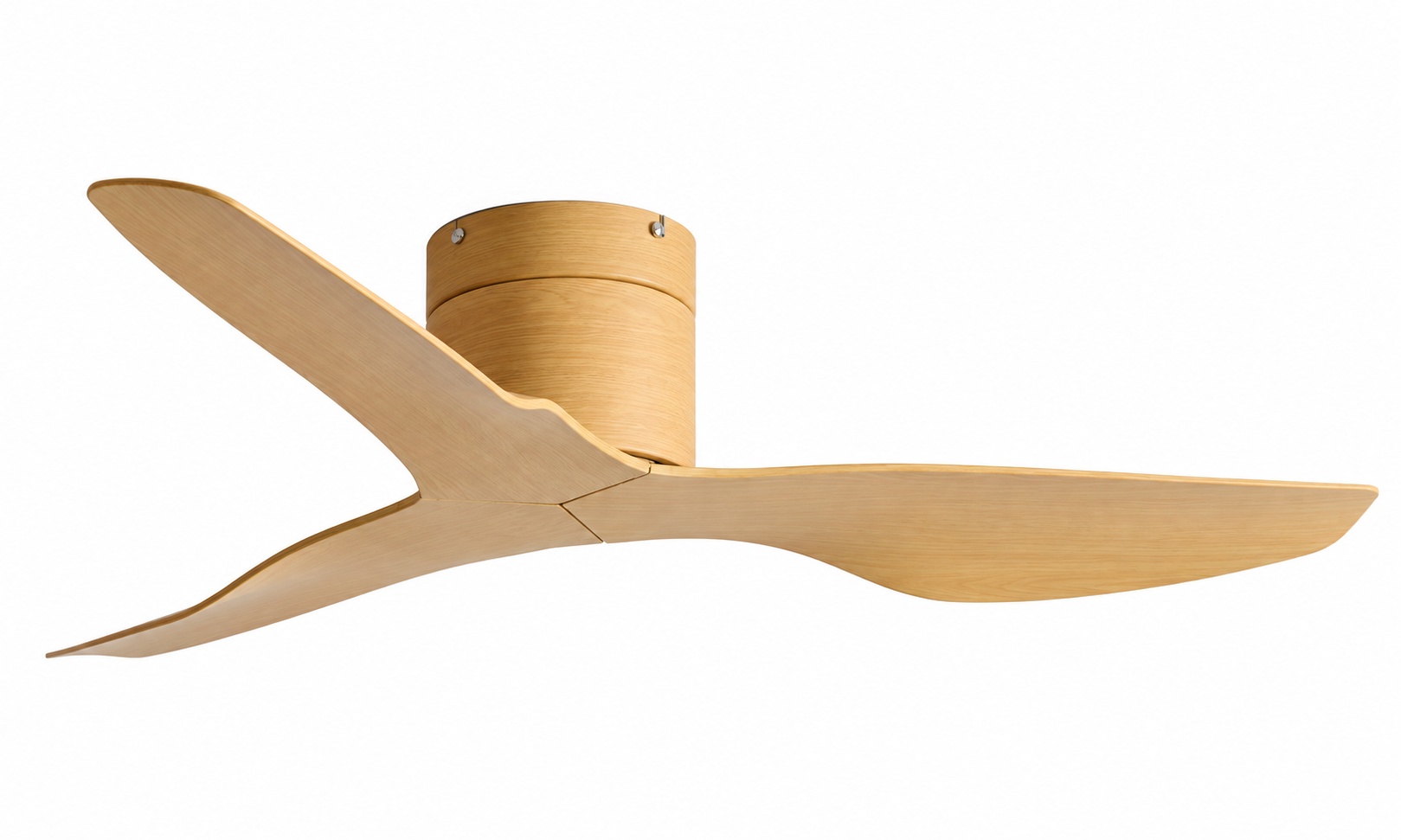

Full Wood Grain
Wood-grain styling across the housing and blades.

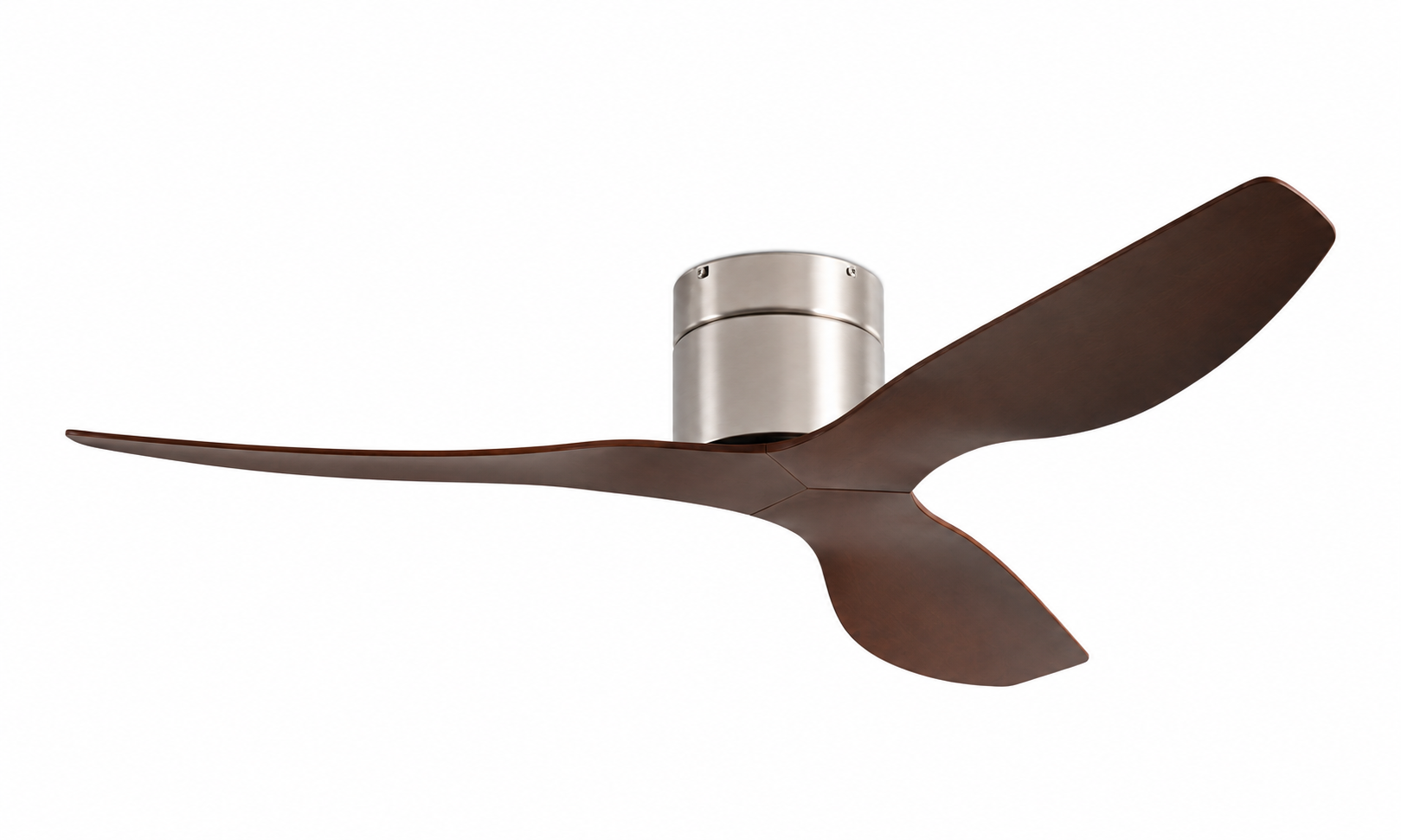

Satin Nickel & Walnut
Satin-nickel housing with walnut-tone blades.
Verified Product Data
K-017-3 Specifications
This fan-only model uses three ABS blades and a DC motor. Select the size and control configuration according to the room and project requirements.
Ask about a project configuration| Model | K-017-3 | Mounting Type | Flush mount / low profile |
|---|---|---|---|
| Size Options | 45 inch / 52 inch | Unfolded Diameter | 114 cm / 132 cm |
| Motor Power | 35W / 38W | Applicable Area | 6–15 m² / 15–25 m² |
| Motor Type | DC motor | Blade Material | ABS |
| Speed Settings | 6 speeds | Light | Not included |
| Control Type | Remote / wall / dual | Timer | 2H / 4H / 6H |
| Motor Voltage | 85–265V, 50Hz | Ingress Protection | IP44 |
| Overall Height | 17.5 cm | Color | Eight shown finishes; contact sales for customization |
Size Selection
Choose 45 or 52 Inches
The two sizes use the same compact no-light design with different blade spans, motor power and suggested room areas.
- 45 Inch114 cm diameter, 35W motor power, suggested for 6–15 m².
- 52 Inch132 cm diameter, 38W motor power, suggested for 15–25 m².
- ControlsConfirm remote, wall or dual control when discussing the order.
- FinishSelect a shown finish or contact sales about a customized color.
Product Positioning
A Compact Fan-Only Configuration
K-017-3 keeps the fixture close to the ceiling and leaves lighting separate. Its 17.5 cm overall height, three ABS blades and six-speed DC motor make it a focused option for low-profile fan ranges.
No Integrated Light
Designed as a dedicated air-circulation product.
Low Profile
Overall product height is 17.5 cm.
Three ABS Blades
A streamlined three-blade construction.
DC Motor
Six selectable speed settings.
Timer Settings
2-hour, 4-hour and 6-hour options.
Multiple Finishes
Eight product colors are shown on this page.
Answers
K-017-3 Product FAQ
Key answers for buyers reviewing this model.
No. K-017-3 is a fan-only model without an integrated LED light.
The available size options are 45 inches and 52 inches, with unfolded diameters of 114 cm and 132 cm.
The model supports remote control, wall control or a dual-control configuration.
Eight current finishes are shown here. Contact Kajiapu to discuss other color requirements and confirm feasibility.
Share the required size, finish, control type, target market and expected quantity so the supplier team can review your request.
Project Inquiry
Request K-017-3 Details
Contact Kajiapu about K-017-3 sizes, finishes, control options and project requirements. E-mail sales@kajiapu.com, call +86 13087968007. Address: 3rd Floor, Building 1, Shengqiu Industrial Park, Guzhen Town, Zhongshan, Guangdong, China 528400.
